Nokia RM-632 - Audio Interface

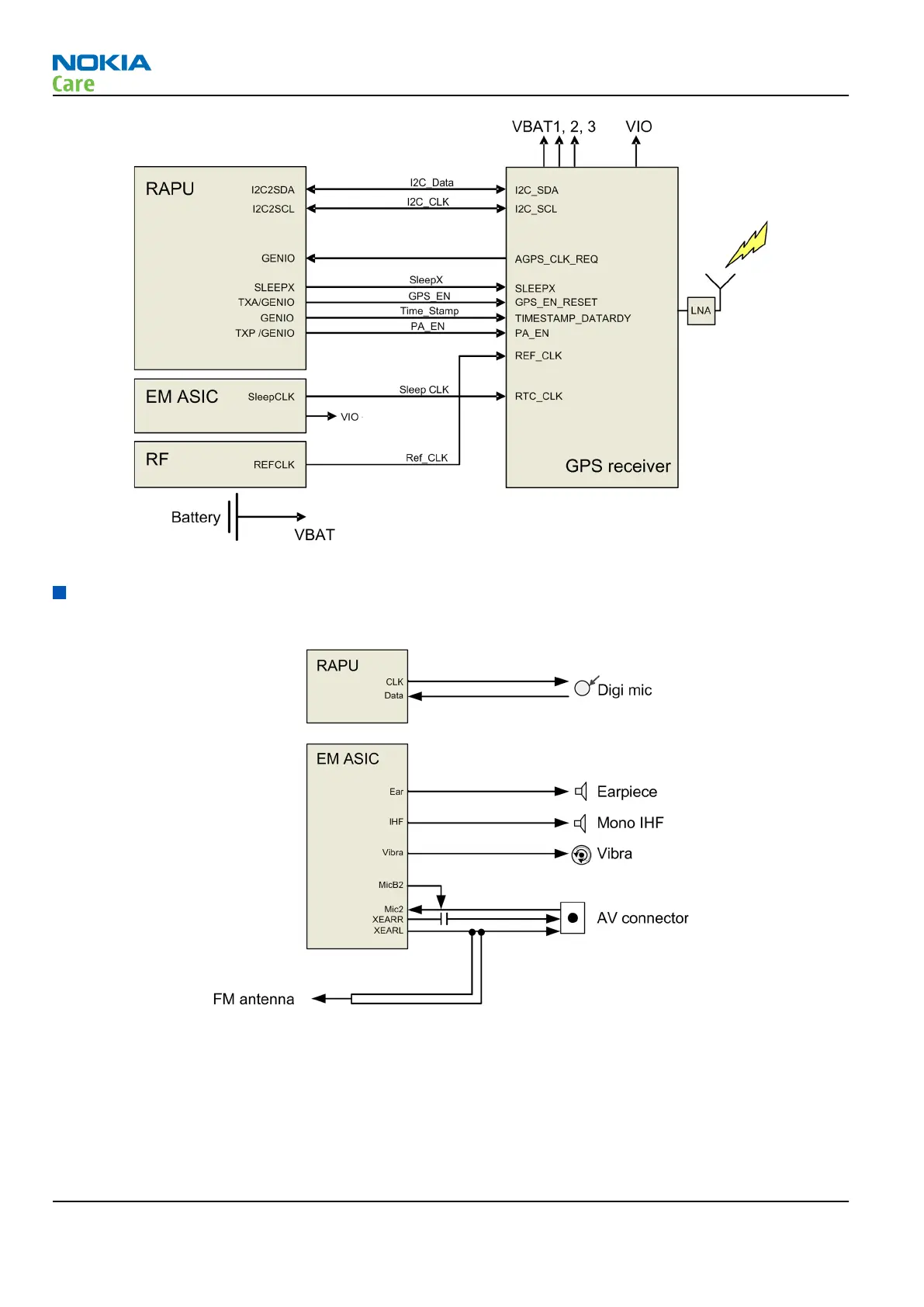

Figure 38 GPS interface
Audio interface
The following block diagram illustrates the audio interface of the phone:
Figure 39 Audio interface
The digital microphone is connected directly to RAPU.
The earpiece is driven directly by a built-in amplifier included in EM ASIC.
The IHF speaker is driven directly by a built-in stereo amplifier included in EM ASIC.
The vibra is driven directly by a built-in amplifier included in EM ASIC.
RM-632; RM-634; RM-699
System Module
Page 5 – 16 COMPANY CONFIDENTIAL Issue 3
Copyright © 2010 Nokia. All rights reserved.
