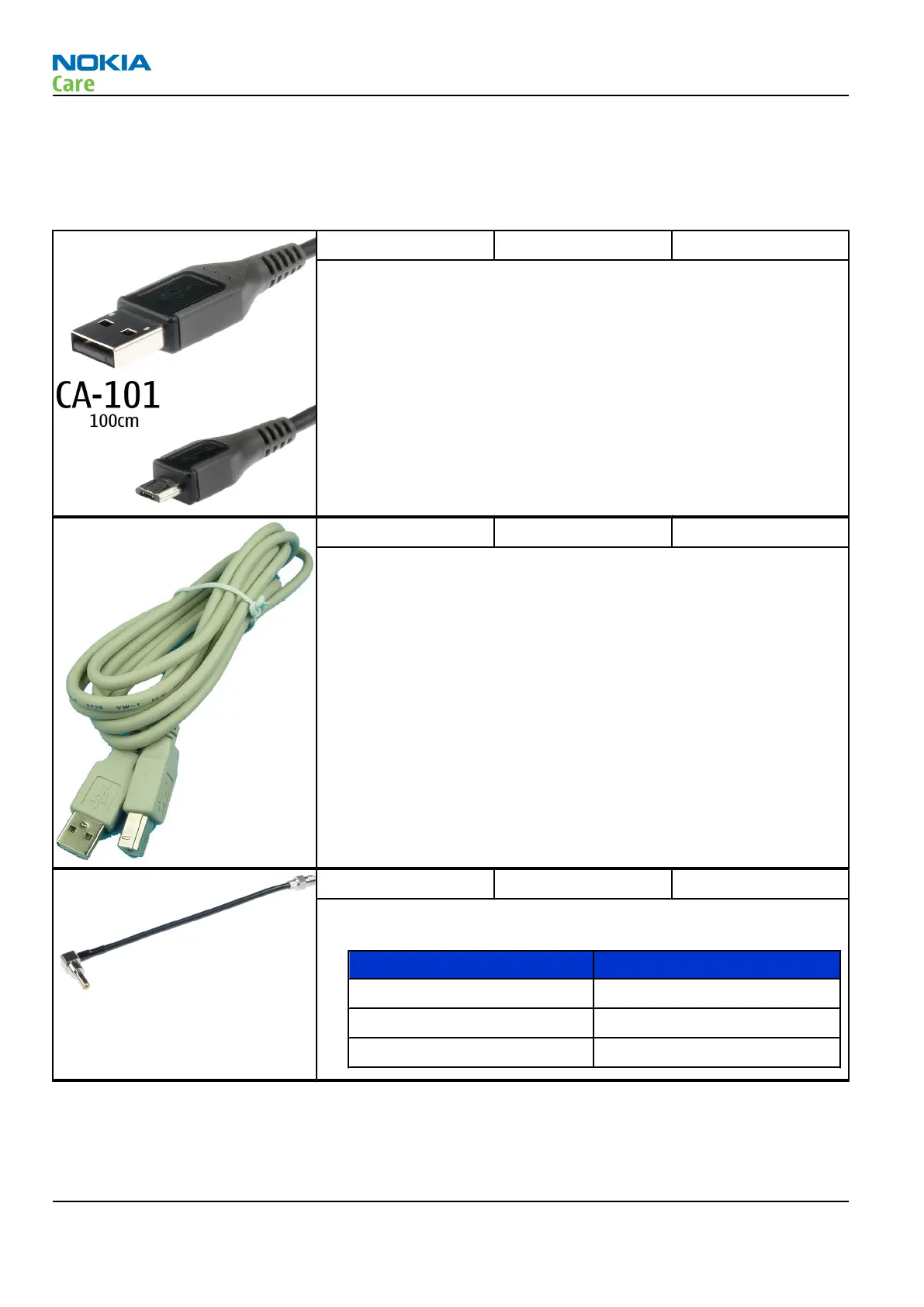

Cables
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-632; RM-634; RM-699. For the correct use of the service devices, and the best effort of
workbench setup, please refer to various concepts.
CA-101 Micro USB cable
The CA-101 is a USB-to-microUSB data cable that allows connections
between the PC and the phone.
CA-31D USB cable
The CA-31D USB cable is used to connect FPS-20/FPS-21 to a PC. It is
included in the FPS-20/FPS-21 sales packages.
CA-58RS RF tuning cable
Product-specific adapter cable for RF tuning.
•
Table 5 Attenuation values
Band Attenuation Rx/Tx
GSM850/900 0.2...0.3 dB
GSM1800/1900 0.3...0.4 dB
WCDMA/WLAN 0.4...0.6 dB
RM-632; RM-634; RM-699
Service Devices and Service Concepts
Page 2 – 10 COMPANY CONFIDENTIAL Issue 3
Copyright © 2010 Nokia. All rights reserved.
