This test will perform three tests in one; Self Test, Oscillator Test and CW Test, and will provide a Pass/Fail
response. The
GPS Quick Test
window also contains a Receiver On button. These checks are part of GPS
failure troubleshooting (page 3– 0 ) .

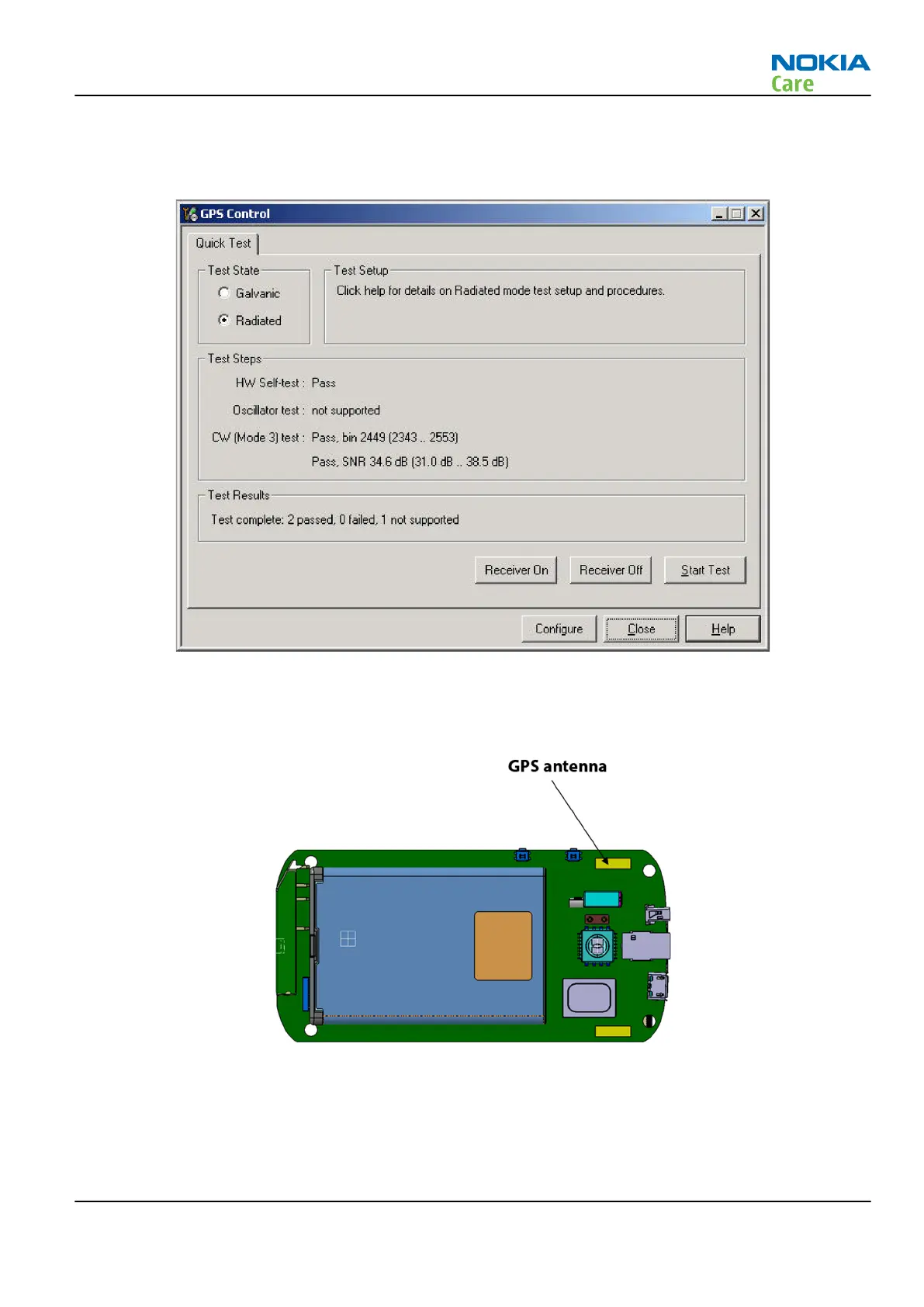

Figure 12 GPS Quick Test window for GPS troubleshooting
GPS antenna
The GPS antenna is covering the GPS band. It is located on the main PWB as shown below.
Figure 13 GPS antenna location
RM-632; RM-634; RM-699
BB Troubleshooting and Manual Tuning Guide
Issue 3 COMPANY CONFIDENTIAL Page 3 – 35
Copyright © 2010 Nokia. All rights reserved.
