Service devices
Product specific devices
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-632; RM-634; RM-699. For the correct use of the service devices, and the best effort of
workbench setup, please refer to various concepts.

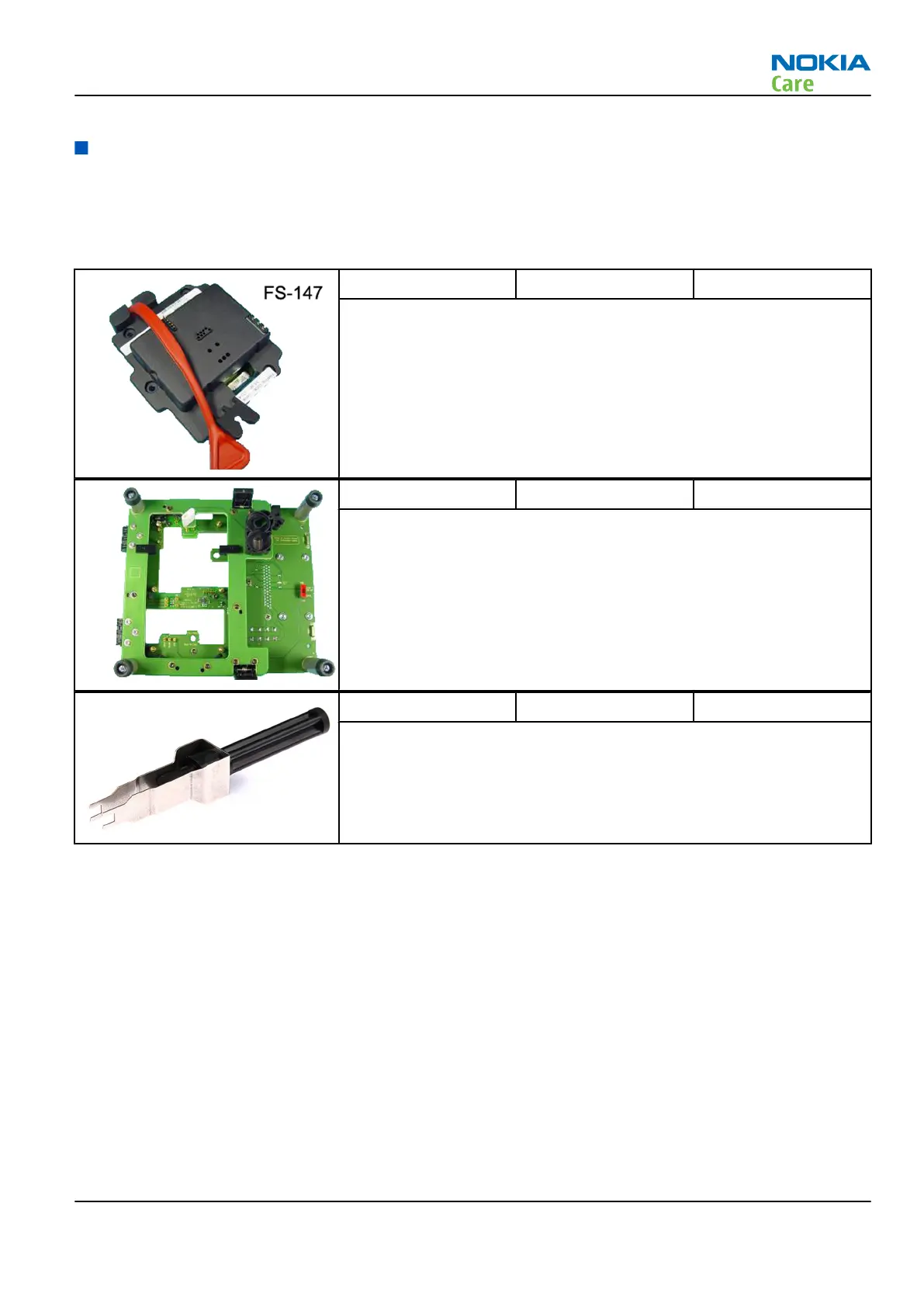

FS-147 Flash adapter
•
FS-147 is equipped with a clip interlock system
•
provides standardised interface towards Control Unit
•
provides RF connection
•
multiplexing between USB and FBUS media, controlled by VUSB
Note: Close lid of SD and SIM reader before attaching the flash
adapter.
MJ-266 Module jig
MJ-266 is meant for component level troubleshooting.
The jig includes an RF interface for GSM and WCDMA. In addition, it has
the following features:
•
Provides mechanical interface with the engine module
•
Provides galvanic connection to all needed test pads in module
•
Connector for control unit
•
Access for USB connector
SS-88 Camera removal tool
The camera removal tool SS-88 is used to remove/attach the camera
module from/to the socket.
General devices
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-632; RM-634; RM-699. For the correct use of the service devices, and the best effort of
workbench setup, please refer to various concepts.
RM-632; RM-634; RM-699
Service Devices and Service Concepts
Issue 3 COMPANY CONFIDENTIAL Page 2 – 5
Copyright © 2010 Nokia. All rights reserved.
