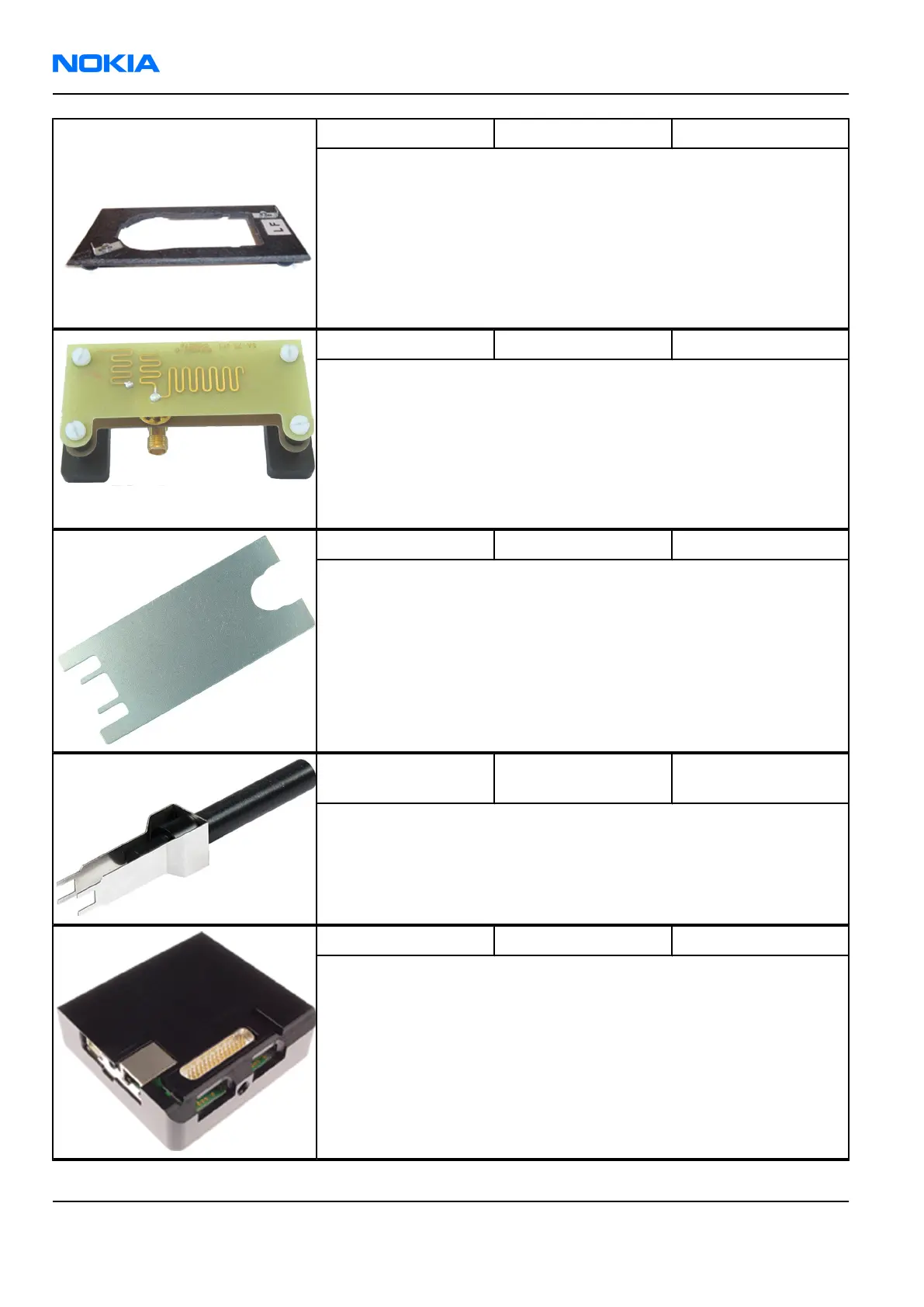

RJ-93 Rework jig
RJ-93 is used as a rework jig for the engine module.
This stencil takes the front end module (FEM) or power amplifier (PA)
module for spreading the soldering paste to the component. Must be
used together with the ST-40 stencil.
SA-76 RF coupler
The SA-76 coupler is for GSM RF testing.
The RF antenna coupler for use with interface adapter SS-62 extends
CU-4/SS-62/FS-9 set-up to allow RF function tests in GSM bands 900,
1800 and 1900 MHz.
SA-76 is not suitable for RF tuning.
Note: When using the Coupler the phone shall be used in
open mode.
SS-42 Camera tool
SS-42 is used to remove the camera out of its socket.
SS-45 Front camera
removal tool
The front camera removal tool SS-45 is used to remove/attach the
front camera module from/to the socket.
SS-46 Interface adapter
SS-46 acts as an interface adapter between a product-specific flash
adapter and FPS-10.
RM-70
Nokia Customer Care Service Tools and Service Concepts
Page 4 –10 COMPANY CONFIDENTIAL Issue 1
Copyright © 2005 Nokia. All rights reserved.
