8.2 “Set-Point”, CD proportional & proportional water meter (pulse)
This mode is valid for “CD pulse” and “CD pulse 2” outputs only.
Proportional mode set the instrument to operate using a calculated percentage between two set values that
enable or disable the Conductivity pump. To use this mode move cursor on “Working Mode”. Press the wheel
and select it.

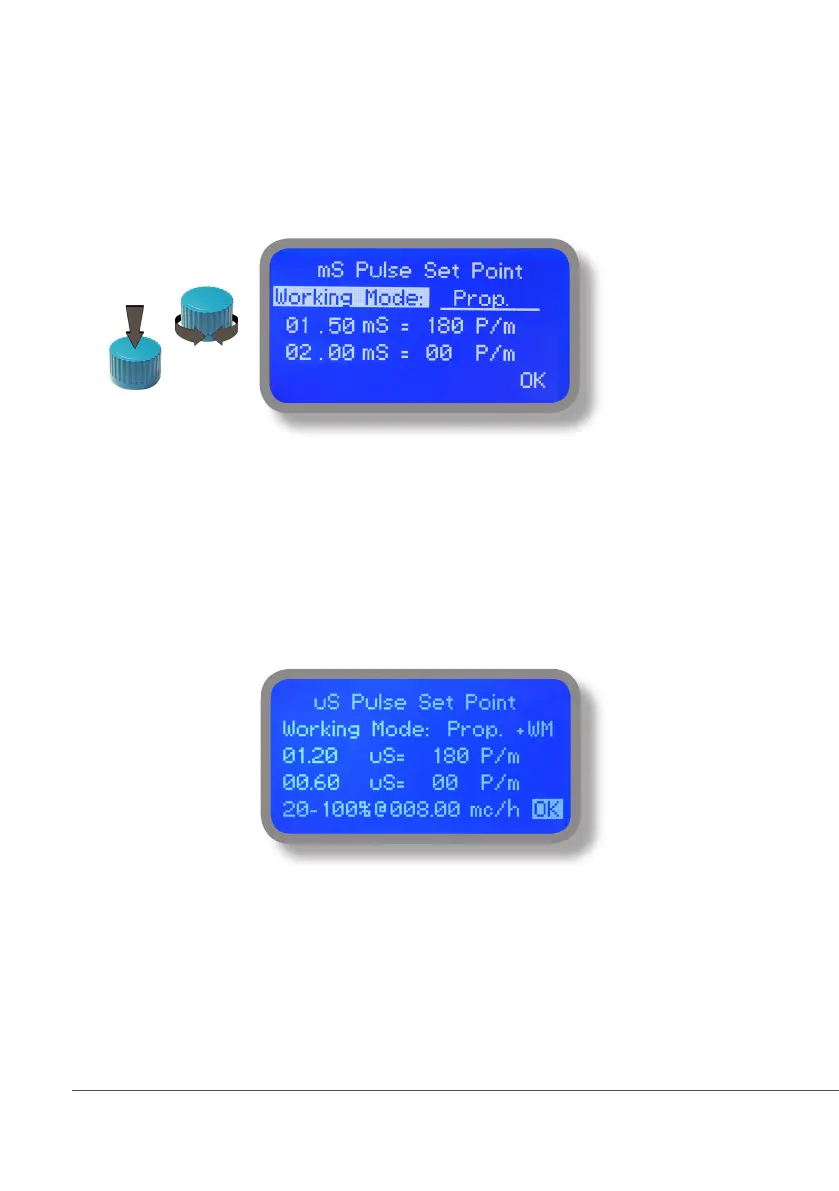

PROPORTIONAL MODE between 2,00(0 P/m) and 1,50(180 P/m). [P/m: pulses per minute]
This mode operates Conductivity pump for a value lower that 1,50mS with maximum dosing capacity (180strokes) and
it will stop Conductivity pump for a reading value higher than 2,00mS.
Proportional Water Meter
Proportional mode can also be set into PROP+WM mode. This option allows to regulate proportional input based on
flow detected by water meter at set percentual values.
e.g.: reading at 0.90 will have an output of 90 P/m (50%). Adding the proportional flow from the water meter with
parameters set between 20 % (at 0mc/h) and 100% (at 8mc/h) results will be that (as example):
At 4 mc/h will have a working period of 54 P/m (60% of 90P/m)
60% is the middle value between 20% and 100% for reading of 4mc/h
