26. LDSCDIND PLUS D Version
The LDSCDIND PLUS D has two timered outputs that are always off until the value reaches the set time. An extra
menu is available under main settings.
1(Live) - E(Earth) - N(Neutral): 85÷264VAC - 5A 50/60 Hz Relay Output “CD Relay Timer”. To use with ON/OFF or PWM device
26(-) - 27(+): Opto coupled output “CD PULSE Timer”. To use with “IS” , “MF” , “PLUS” series dosing pumps

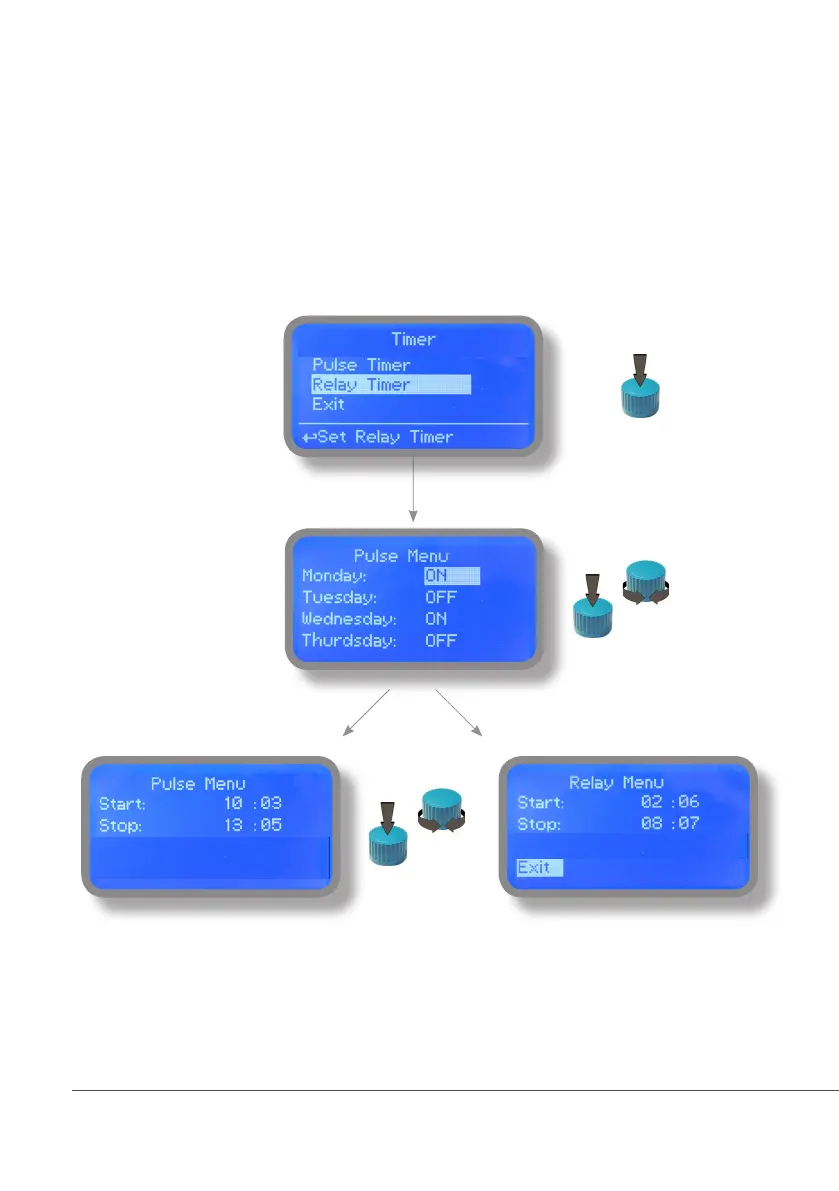

To activate this function operator must specify starting / ending time, day of the week, target setpoint, pulses per minute
for attached pump (pulses output only). Operation will end at ending time. This function override normal instrument
activities. Normal operations will resume at the ending of procedure and feeding delay timer set in “PARAMETERS”
menu (see page 22).
“CD Relay Timer”
1- E- N
“CD Pulse Timer”
26(-) - 27(+)
To activate this function operator must specify starting / ending time, day of the week, target setpoint, pulses per minute
for connected pump (pulses output only).
