8.1 “Set-Point”
“CD PULSE 1 ” and “CD PULSE 2” outputs can be set to operate within:
On/Off, Proportional (%) or disabled (OFF) modes.
“CD RELAY 1” and “CD RELAY 2” outputs can be set to operate within:
On/Off, Proportional PWM, Fixed PWM or disabled (OFF) modes.

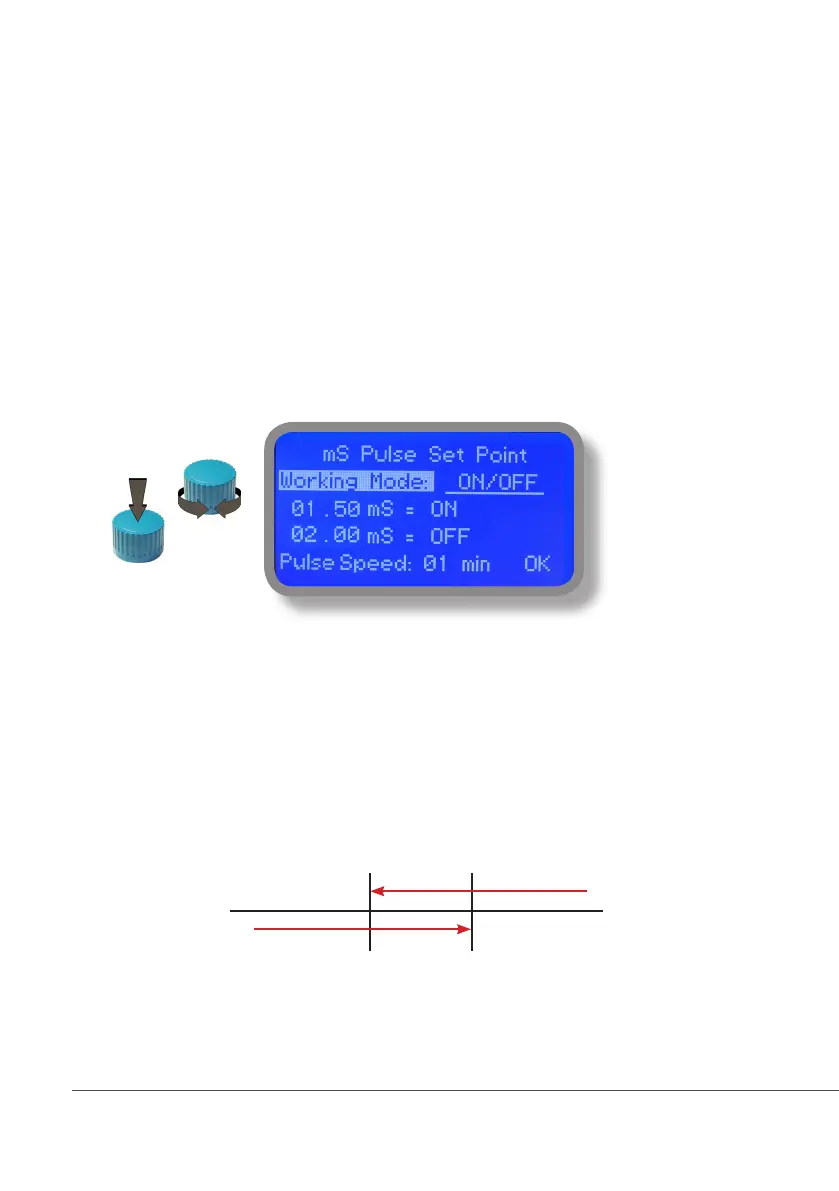

8.2 “Set-Point”, Conductivity (on/off)
All Conductivity outputs can be set to operate into this mode.
This mode enables Conductivity pump to operate between two On/Off values. Move wheel over “Working
Mode” to select it.
ON/OFF mode
Set Conductivity value at 1,50mS ON and 2,00mS OFF. The difference between the two Conductivity values is called
HYSTERESIS.
Instrument will enable the Conductivity pump when reading value will decrease at 1,50mS
At 1,50mS the Conductivity pump will be enabled until reading value will increase at 2,00mS.
Pulse Speed: pulses per minute setting.
1,50 2,00
ON
OFF
