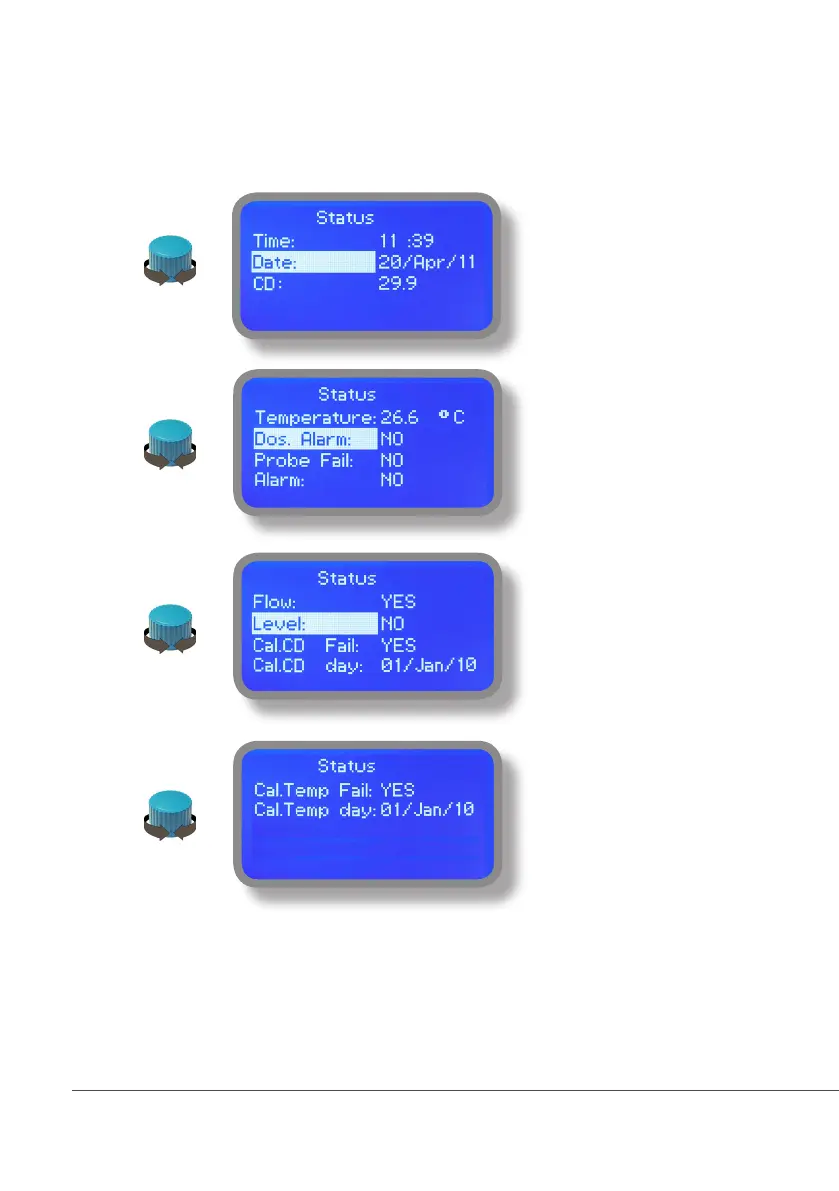

5. Quick status check
From main screen completely rotate clockwise the wheel to review main instrument parameters and current outputs
status.
Local Time
Local Date
Conductivity probe reading
Temperature probe reading
Dosing alarm condition
Probe failure status
Alarm contact status
Flow contact status
Tank Level status
Last Conductivity calibration
result
Last Conductivity calibration date
Last Temp. calibration result
Last Temp. calibration date
Outputs Status
See mainboard (page 4) for related
connetions.
:::
