Figure 8:
1
6
2
3
4
5
7
8
16 in
(406 mm)
24 in
(610 mm)
9
10
19.7 in
(500 mm)

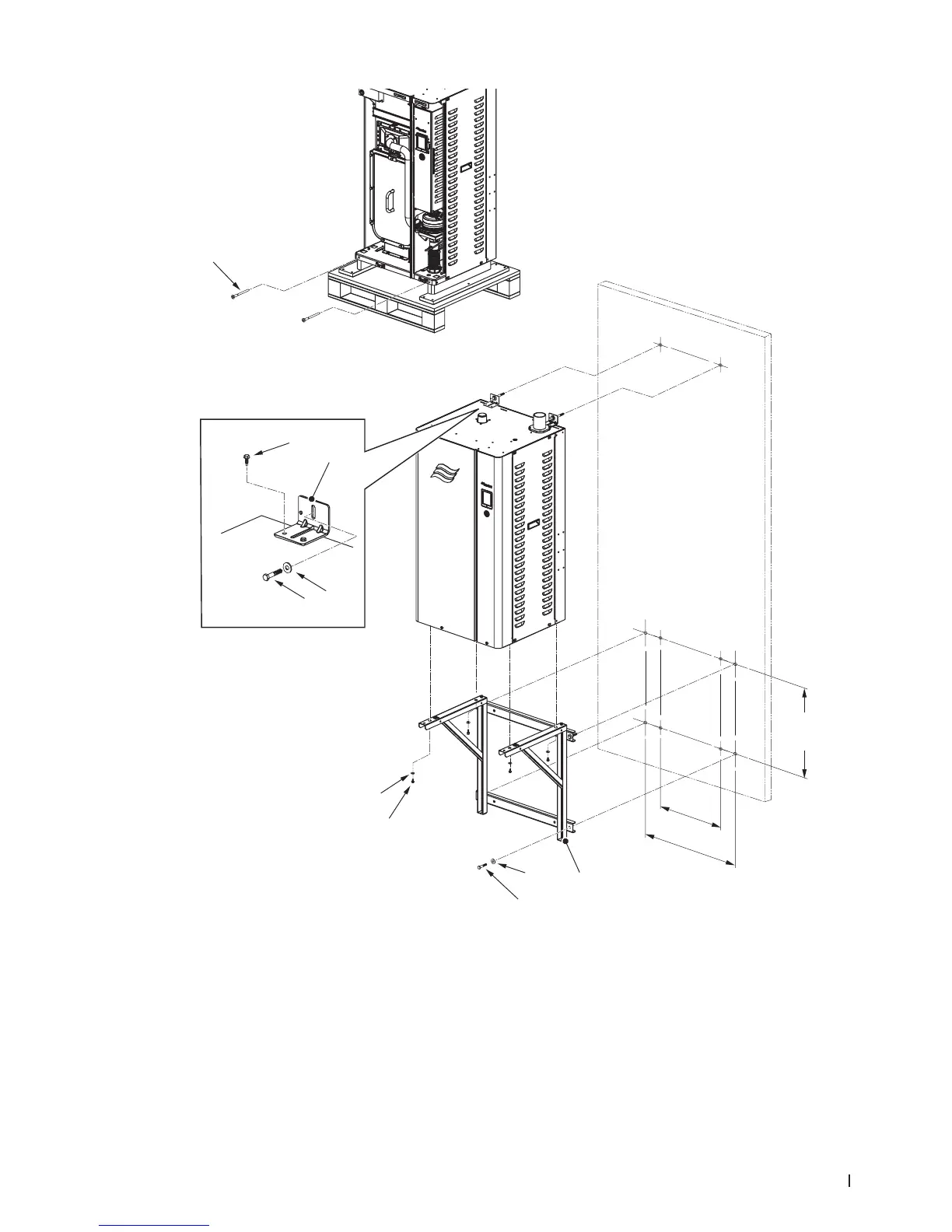

Standard Wall Mounting, Compact Unit Only
1 Bracket, mounting (supplied)
2 Washer, at, 3/8 in (×4, not supplied)
3 Bolt, lag, 3/8×2 in (×4, not supplied)
4 Bolt, M6×12 (×4, supplied)
5 Washer, at, M6 (×4, supplied)
6 Washer, at, 1/4 in (×2, not supplied)
7 Bolt, lag, 1/4×1 in (×2, not supplied)
8 Screw, sheetmetal (×4, supplied)
9 Bracket, L (×2, supplied)
10 Screw, shipping (×2, discard)
