6 Product Specications
6.1 Weights
For the weights of the Nortec GS humidier models refer to Table 11 on page 21.
6.2 Dimensions

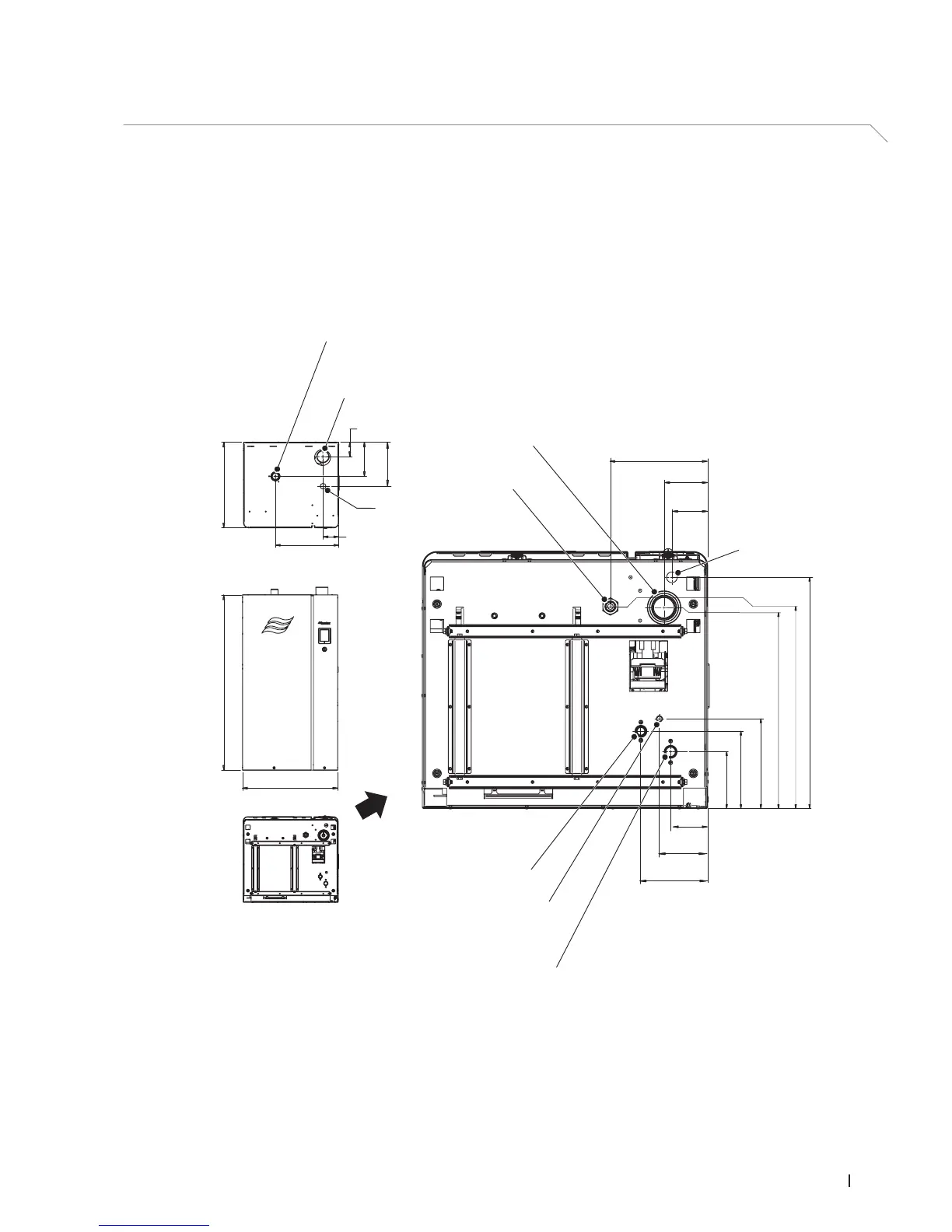

Figure 35:
Exhaust Outlet*
60 mm - GS 50-CS/NX
80 mm - GS 100-CS/NX
ø
ø
Steam Outlet
1-3/4 in (45 mm)ø
Gas Inlet
½ in NPT
Air Inlet
2 in (50 mm) - GS 50
3 in (75 mm) - GS 100
ø
ø
Power In
7/8 in (22 mm)
ø
Water Inlet**
3/4 in BSPP thread
Condensate Outlet
(CS/NX only)
3/8 in (9.5 mm)
ø
Drain Outlet
7/8 in (22 mm)
ø
8
(203)
3.5
(90)
2.9
(74)
19
(485)
16.7
(423)
16.5
(419)
4.0
(102)
5.9
(150)
6.9
(176)
3.4
(87)
3.0
(76)
6.3
(161)
3.6
(92)
8.5
(215)
3.9
(99)
21.2
(539)
15.7
(398)
23.5
(598)
43.4
(1102)
11.5
(292)
Controls In
7/8 in (22 mm)
ø
* Metric to imperial size adaptor supplied with unit
** BSPP to NPT adaptor supplied with unit
Nortec GS 50/100
Dimensions are shown in inches, and values in brackets are in millimeters.
