5.6.3 Installing Exhaust Condensate Drain Line (CS/NX Model Only)
Install the exhaust condensate drain line (CS/NX model only) as shown in Figure 17.

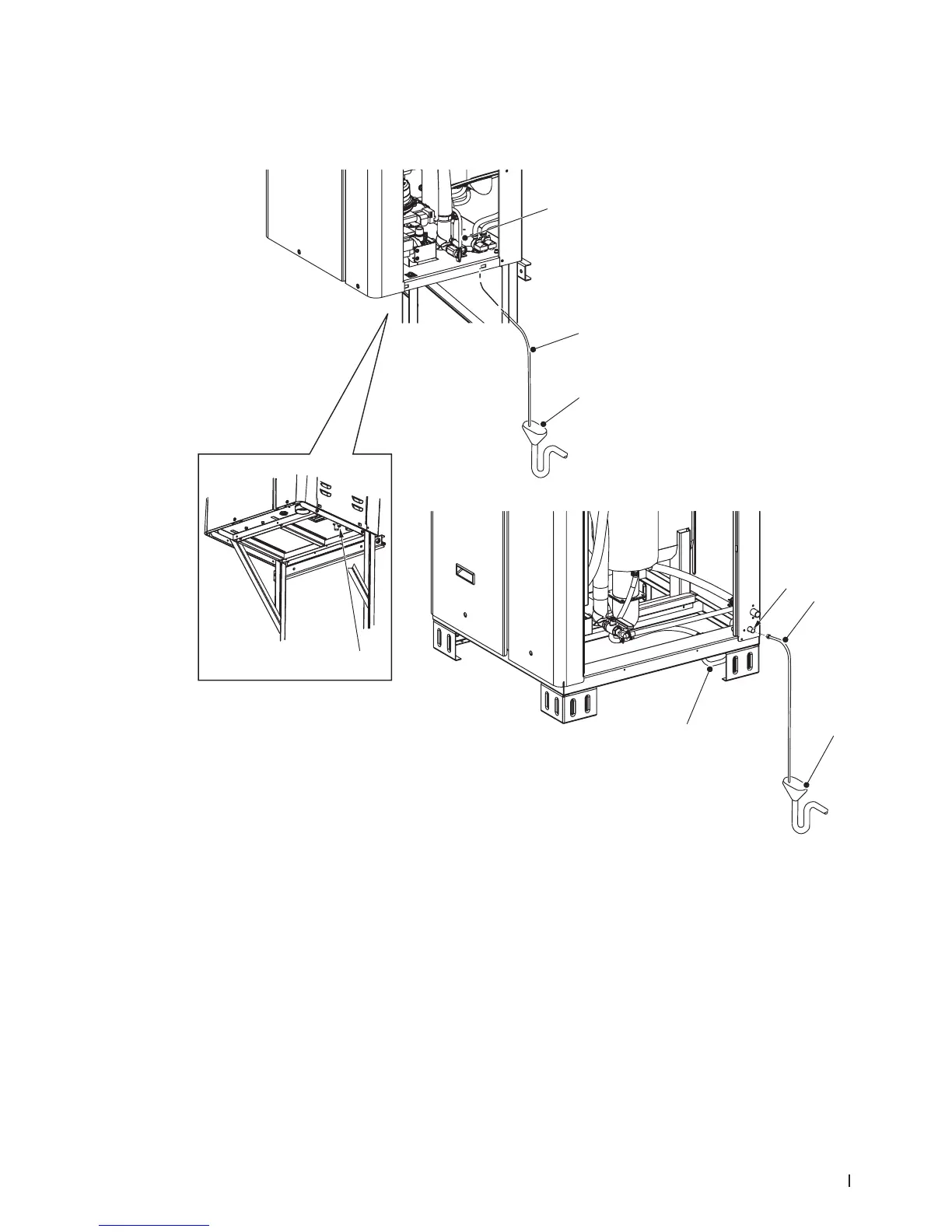

Figure 17:
3
1
2
5
4
3
6
7
Exhaust Condensate Drain Line (CS/NX Model Only)
1 Trap, internal condensate (compact unit) – primed with water
2 Hose, drain, exhaust condensate (compact unit) – (not supplied) must have minimum downslope of 1.2°, and must not touch sides or
bottom of funnel. Use Nortec condensate hose.
3 Funnel, air gap – funnel must be located below the condensate outlet
4 Outlet, condensate drain (full-size unit), 1/2 in (13 mm) O.D. (unthreaded)
5 Hose, drain, exhaust condensate (full-size unit) – (not supplied) must have minimum downslope of 1.2°, and must not touch sides or
bottom of funnel.
6 Trap, internal condensate (full-size unit) – primed with water
7 Outlet, condensate drain (compact unit), 3/8 in (9.5 mm) O.D. (unthreaded)
