5.11.3.6 Single-Phase Power Supply Connection
Connect the single-phase power supply to the Nortec GS humidier as shown in Figure 32. Refer to the
specication label (Figure 3 on page 10) for power requirement and sizing of fused disconnect switch.
IMPORTANT! Make sure that the main power cable is proper grounded through the ground lug
inside the control cabinet.
All wiring must be in accordance with national and local electrical codes.

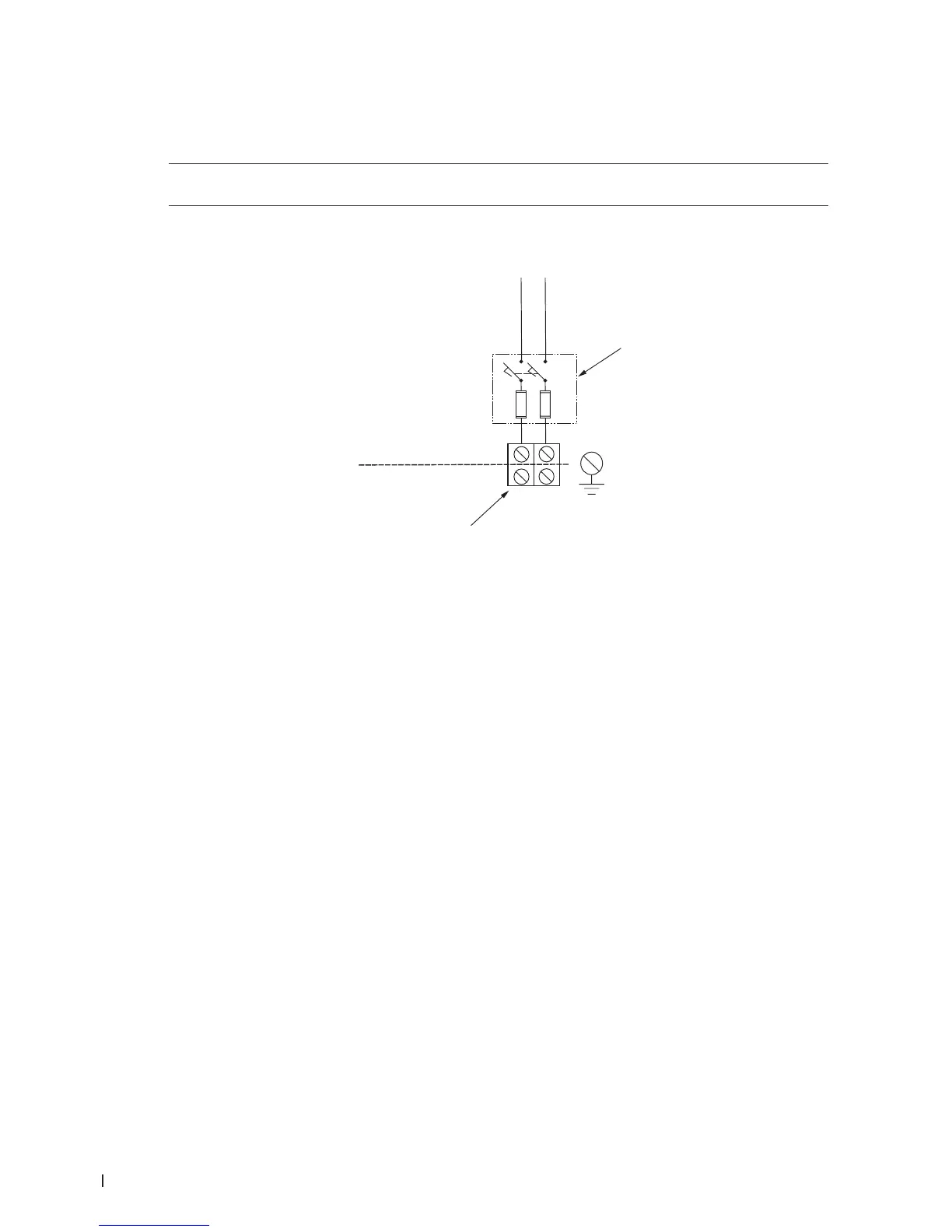

Figure 32:
N
L
EXTERNAL
INTERNAL
1
2
Single-Phase Power Supply Connections
1 Switch, disconnect, external fused
2 Terminal block, power supply
