Nortec GS - Page 31

25Installation
Nortec GS
2583703_EN_1608

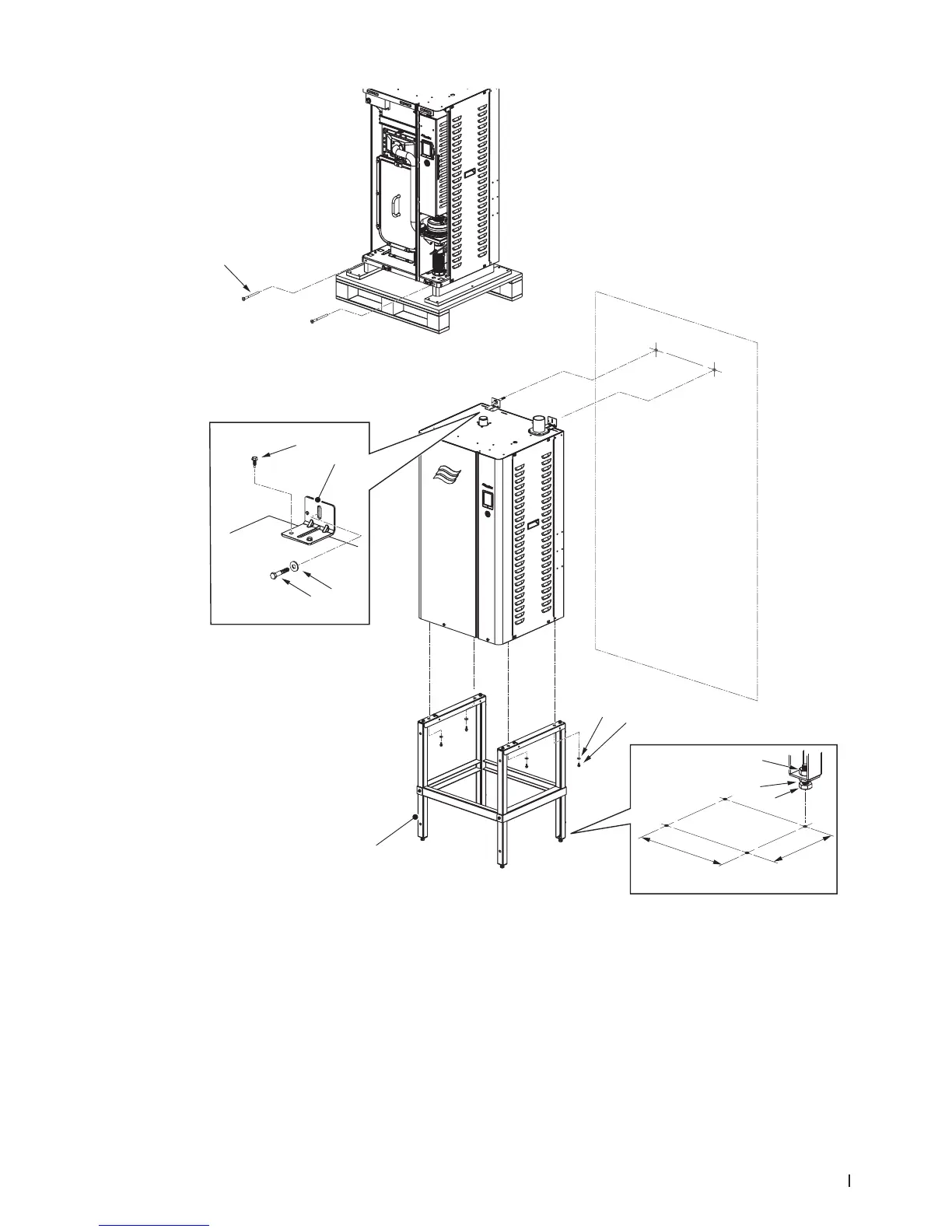

Figure 9:
3
8
7
10
9
6
1
2
5
4
21.2 in
(537 mm)
17.8 in
(451 mm)
11
Standard Floor Stand Mounting, Compact Unit Only
1 Nut
2 Nut, jam
3 Screw, leveling
4 Bolt, M6×12 (×4, supplied)
5 Washer, at, M6 (×4, supplied)
6 Stand, oor
7 Bolt, lag, 1/4×1 in (×2, not supplied)
8 Washer, at, 1/4 in (×2, not supplied)
9 Bracket, L (×2, supplied – used if unit is installed against a vertical mounting surface)
10 Screw, sheetmetal (×4, supplied)
11 Screw, shipping (×2, discard)
