NovaStar MX2000 Pro - Rear Panel

MX2000 LED Display Controller User Manual
www.novastar.tech
3

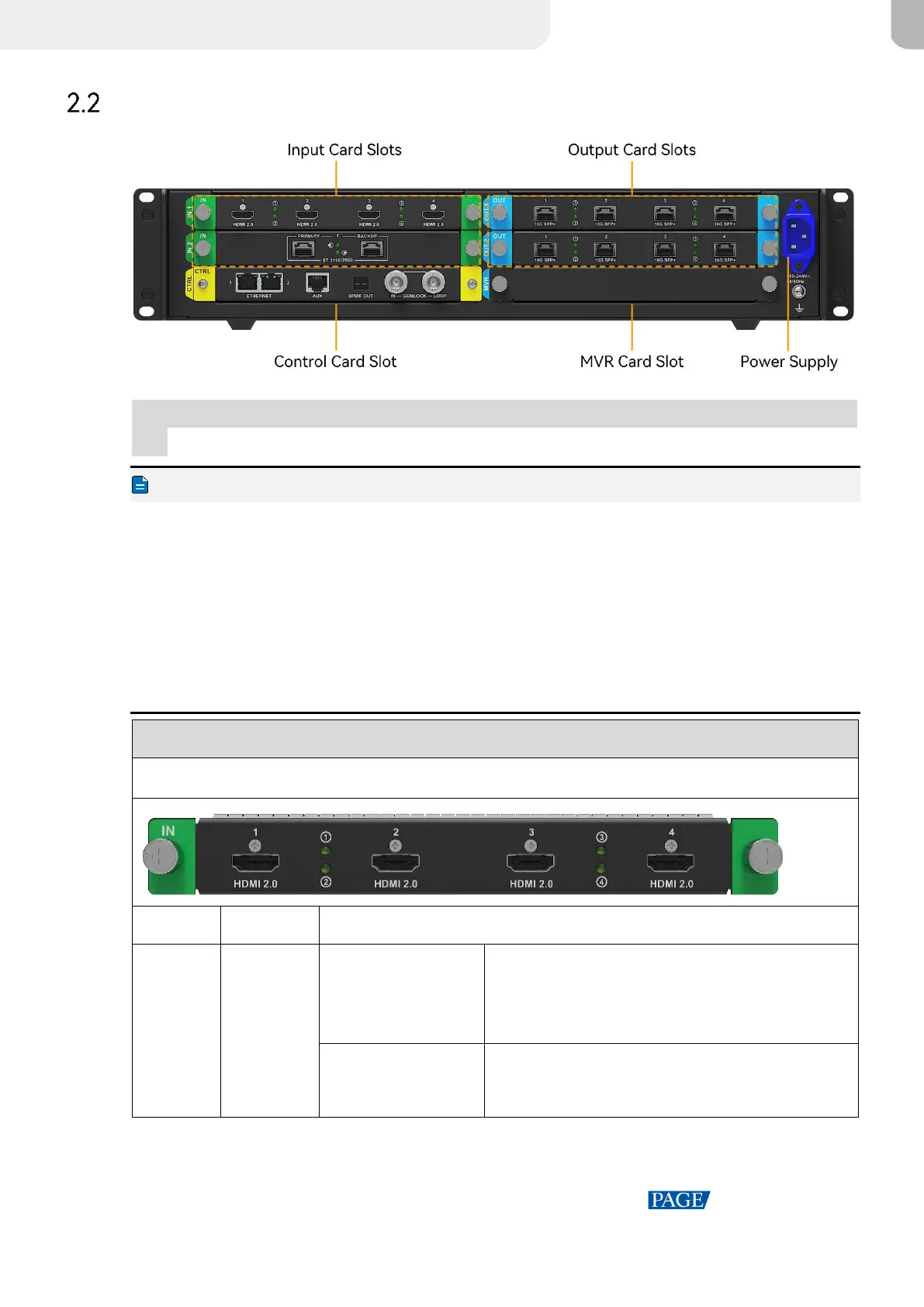

Rear Panel
All product pictures shown in this document are for illustration purpose only. Actual product may
vary.
Note
Markings on the rear panel card slot:
 The card slot marked with "IN x" only supports the installation of input cards, where x is the slot number. For
example, IN 1 indicates the first input card slot.
 The card slot marked with "OUT x" only supports the installation of output cards, where x is the slot number.
For example, OUT 2 indicates the second output card slot.
 The card slot marked with "MVR" only supports the installation of MVR output card. (Reserved)
 The card slot marked with "CTRL" only supports the installation of control cards.
Input Card
MX_4×HDMI 2.0 input card
Type
Qty
Description
HDMI 2.0
4
Resolution
Max resolution: 4096×2160@60Hz or
8192×1080@60Hz (Forced)
Min resolution: 800×600@60Hz
Max width/height
(Forced)
Max width: 8192 pixels (8192×1080@60Hz)
Max height: 8192 pixels (1080×8192@60Hz)
