4.3 Display of Shifts
Requirements
Basic softkeys displayed.
Actions
Select the SHIFT page. ☞
SHIFT
+
. . / . .
DAT

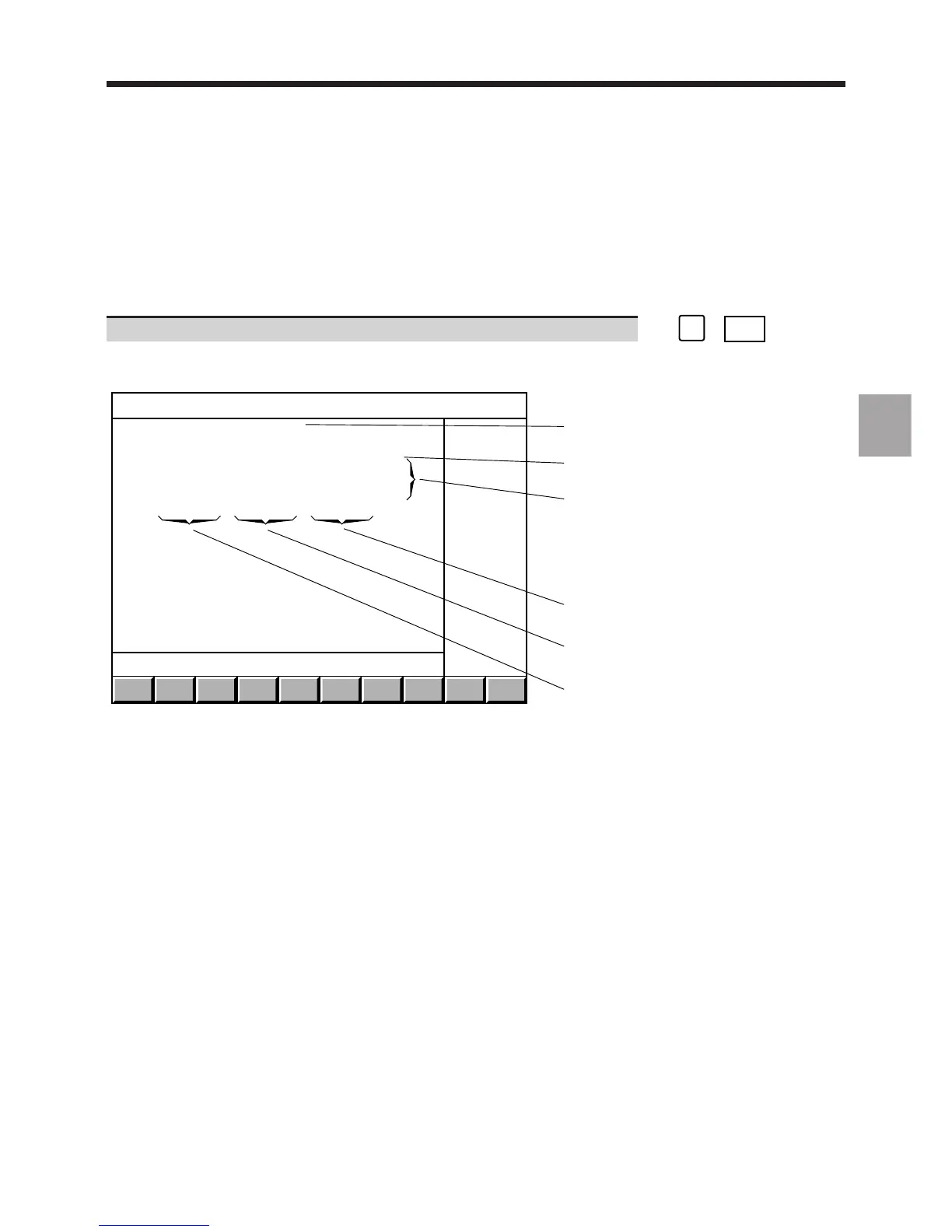

Display of shifts:
1
2
3
4
5
6
SCALE: E 1000/1000
DAT1 DAT2 DAT3
X + 126.452+ 200. + 100. *
Y - 503.267+ 150. + 100. *
Z - 42.871+ 0. + 0.
B + 0. + 0. + 0.
1 - Scaling factor in thousandths of the programmed dimensions
2 - The asterisk indicates axes affected by turntable rotation (DAT3)
3 - Axes displayed
4 - Programme origin eccentricity (e.g. milling machines fitted with turntables)
5 - Programme origin shift
6 - Part origin shift
The dimensions are displayed in mm or degrees.
Notes
This page is called automatically by the homing mode (SHIFTS).
On axis multigroup systems, the first line displays the group number (e.g. GR1) and the rest of the page is shifted down
by one line.
