30

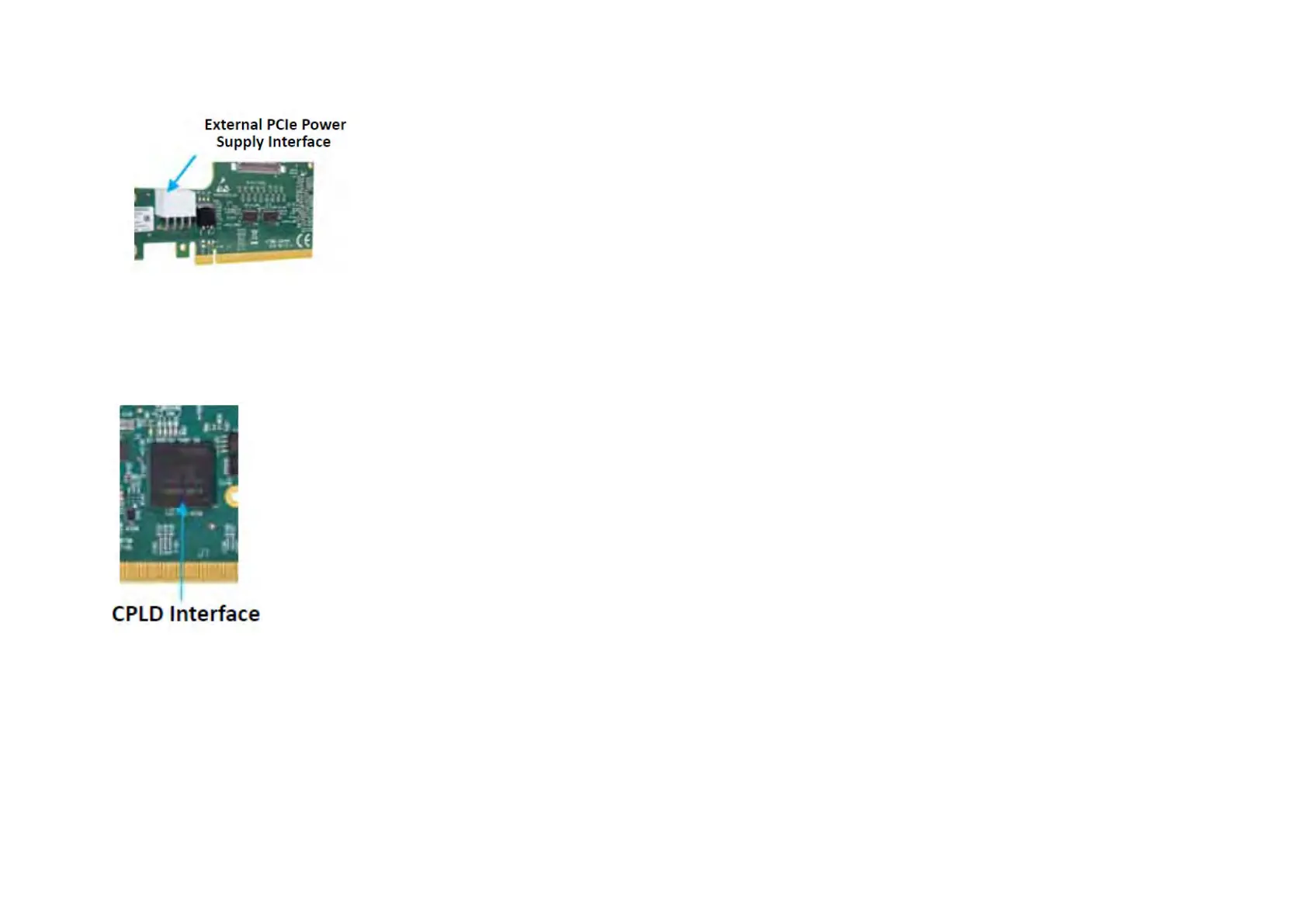

CPLD Interface
The BlueField BF1600 Controller Card incorporates a CPLD device. It drives all BlueField chip configuration pins, all system and device reset, miscellaneous
board configuration setups, power monitoring, and power sequence control.
eMMC Interface
The BlueField BF1600 Controller Card incorporates one eMMC (embedded Multi-media Card) interface (eMMC0) which is utilized as a boot source for the
Arm core. Arm Tile software (boot, POST, OS code) is stored in eMMC Flash for the boot-load function. The eMMC device size is 16GB.
