Power-Good Signal LED Interface
There is one green I/O LED to indicate power-good signal. See t

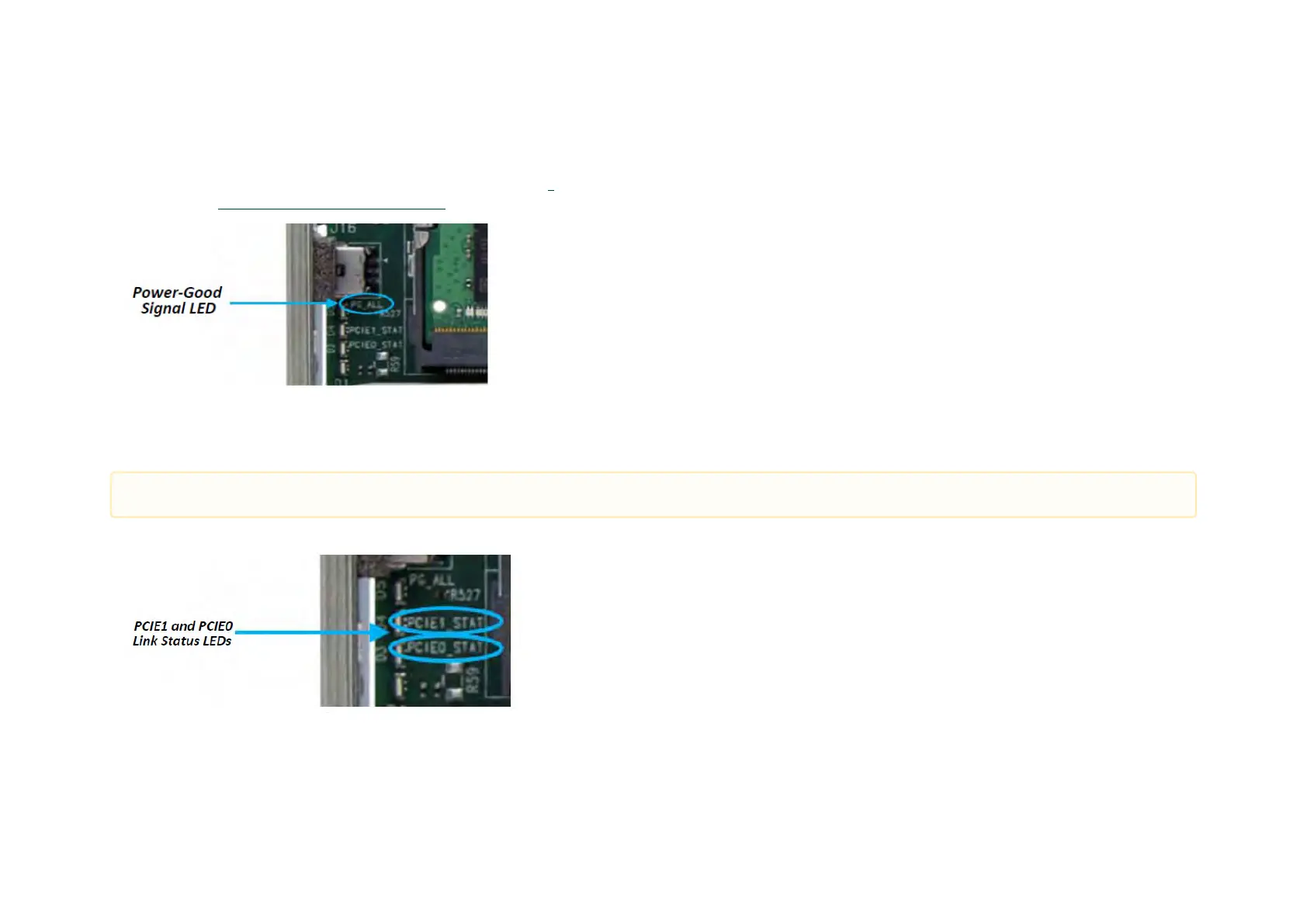

he below figurefor LED locations on the card. For the power-good LED specifications,
please refer to Power-Good Signal LED Interface.
PCI Link Status LEDs
There are two bi-color IO LEDs to indicate proper PCI link status. See the below figure for the location of the LED.
PCI link status LEDs will be activated in a future revision of the card.
