CABLINE-CA II PLUS Connector LED Interfaces

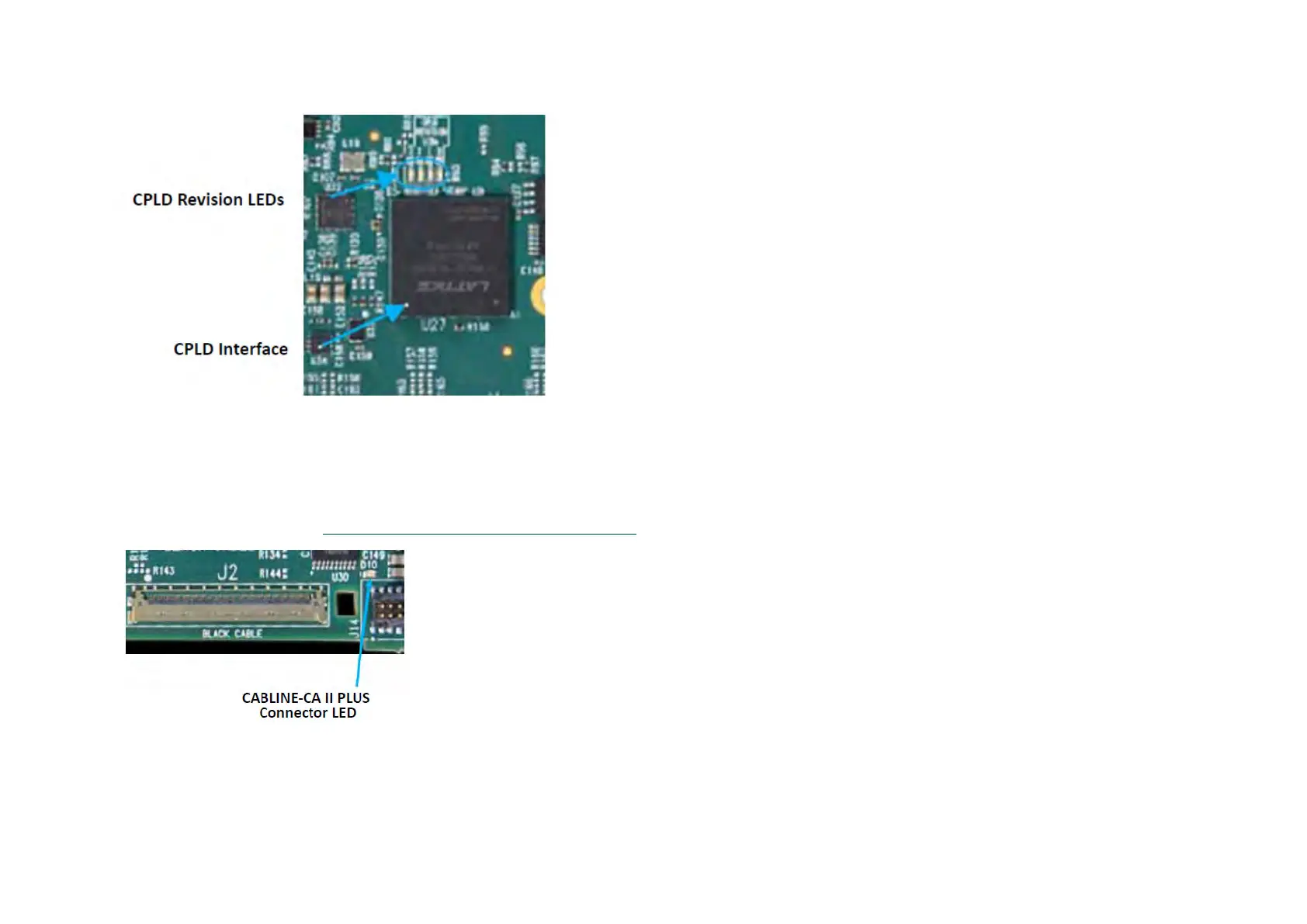

There is one green I/O LED near each CABLINE-CA II PLUS connector (four LEDs in total) on both on the Controller card and PCIe Auxiliary Connection card
indicating the successful connection of the CABLINE-CA II PLUS cables. See the below figure for the green I/O LED location on the cards. For LED
specifications, please refer toCABLINE-CA II PLUS Connector LED Interfaces
.

