Cables and Cabling Configurations
UART Interface Cabling
Debugging or bringing up the card required the use of a USB-to-UART cable that is included in the package contents. Upon inspection, there is a USB

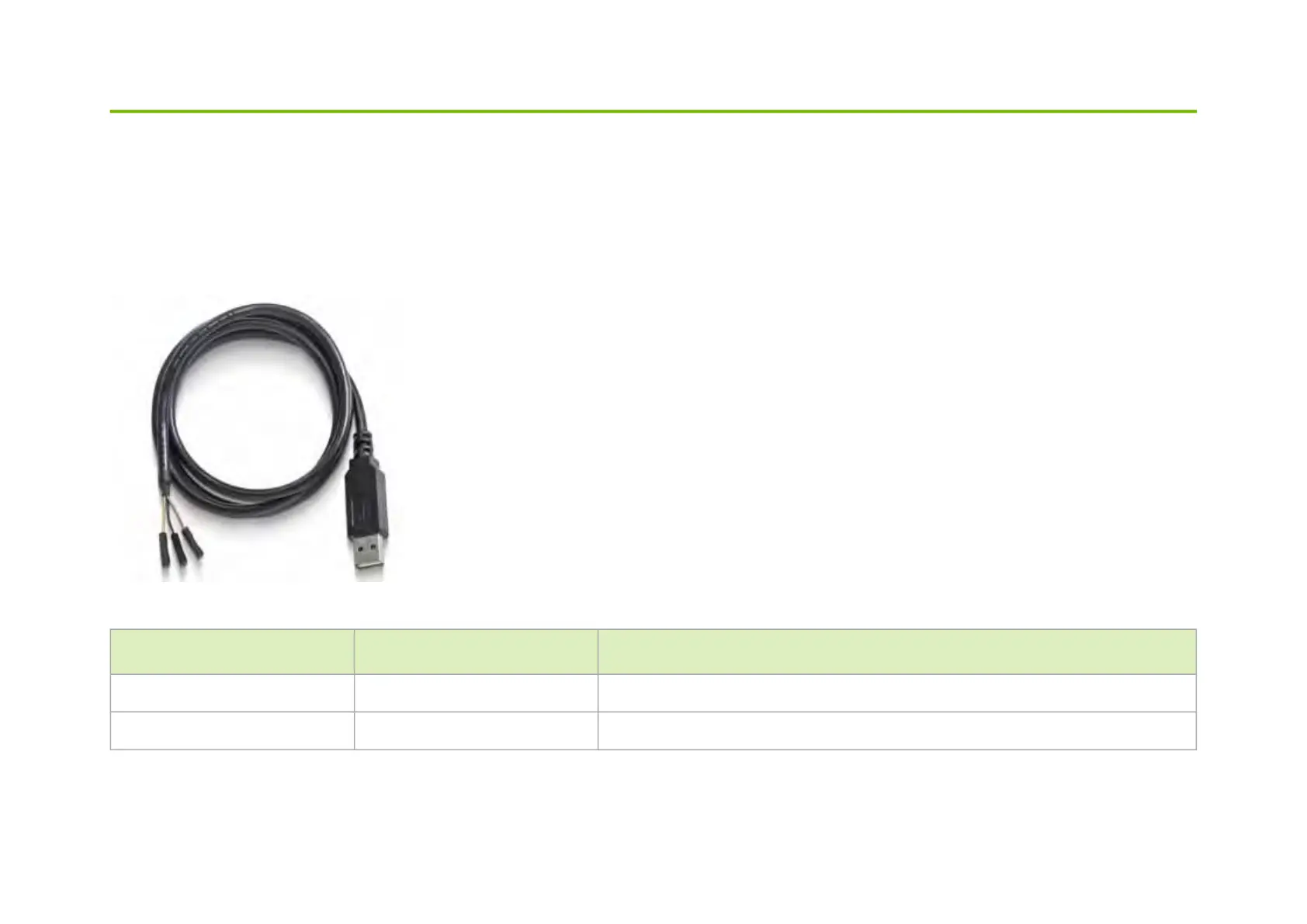

connector with USB 2.0 full speed compatibility and 3 single pole 0.1m pitch header that connects to a serial port on the Controller Card. The following
figure shows an example of a USB-to-UART Cable, and the table provides the cable signal description.
UART Cable Color Legend and Description
Color Signal Description
Black GND Device ground supply pin. Connects to the Controller Card ground pin
Yellow RXD Receive Asynchronous Data input. Connects to TXD output on Controller Card
