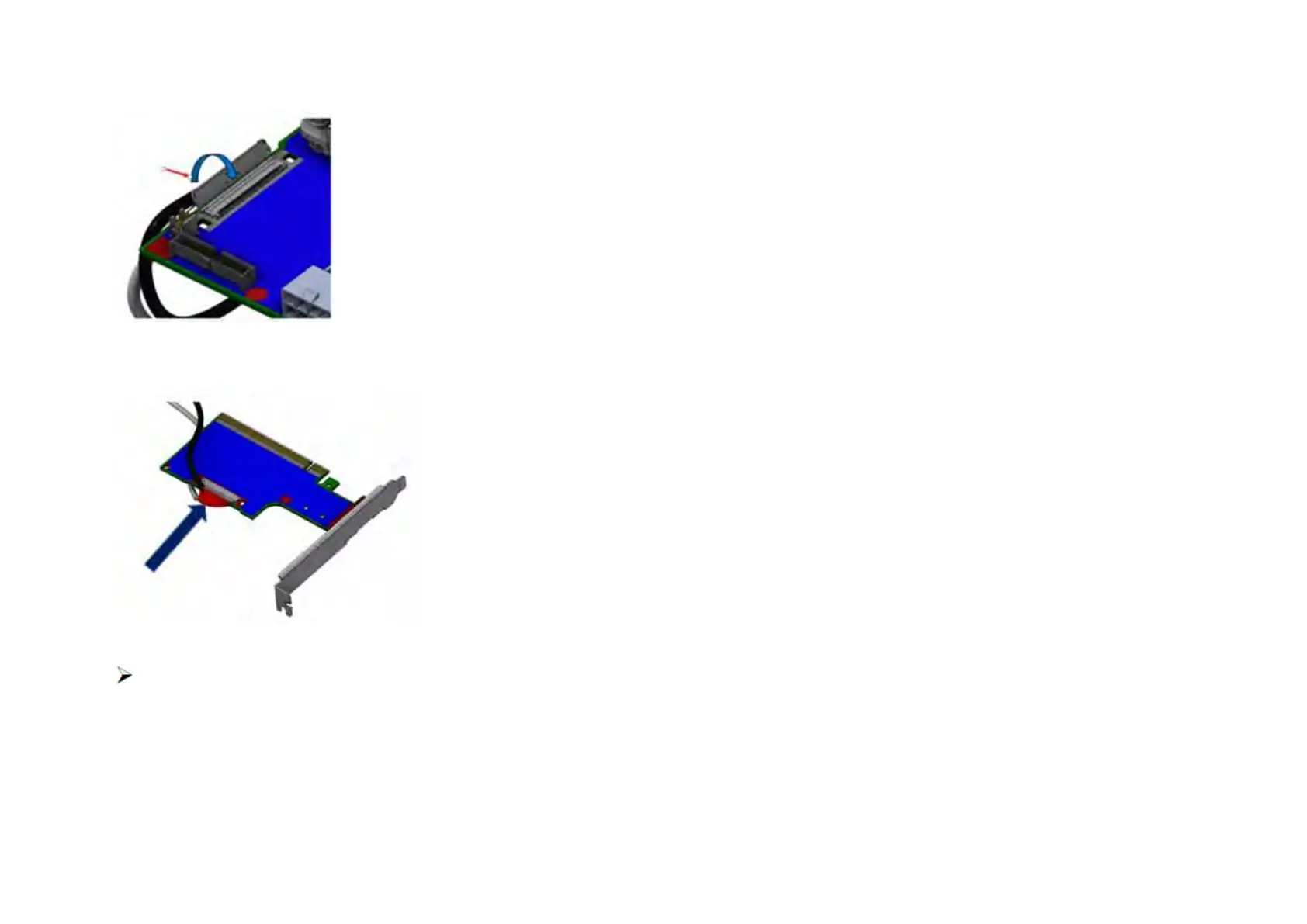

Step 3. Plug the CABLINE-CAII PLUS harness on the PCIe Auxiliary Card. As indicated on both sides of the Auxiliary connection card; plug the black
harness to the component side and the white harness to the print side.

Connect the BF1600 Controller Card in an available PCI Express slot on the JBOF system.
Step 1. Locate an available PCI Express x16 slot.

Nvidia BlueField BF1600 Specifications

General

Form Factor	PCIe Card
Architecture	Arm
CPU Cores	16
Memory Channels	2
Network Interface	2x 100GbE
PCIe Version	4.0
PCIe Lanes	16
Operating Systems	Linux
TDP	75 W
Power Consumption	75 W
Product Type	Data Processing Unit (DPU)
Security Features	Secure Boot
