NVIDIA DGX A100 Service Manual

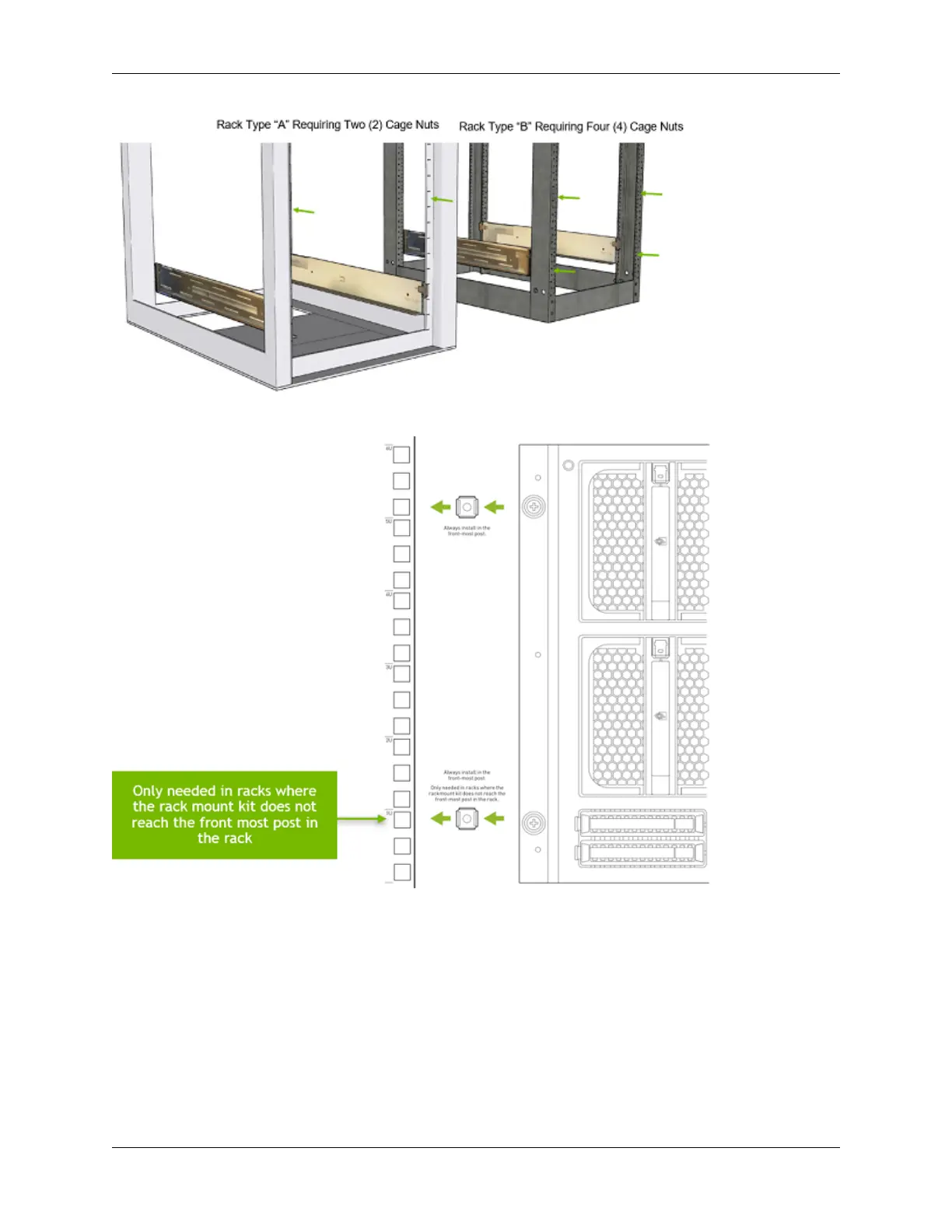

Use the provided template to determine the exact location for installing the cage nuts.
1. Place the template so that the bottom of the template rests on the rail lip (or at the same level
as the rail lip).
The template is double sided so it can be used as a reference on the left and right posts of the
rack.
2. Install the cage nuts at the positions indicated on the template.
▶ Rail kits attached to Type A racks require two (2) cage nuts installed; top positions only.
▶ Rail kits attached to Type B racks require four (4) cage nut installed; both top and bottom
positions.
98 Chapter 21. Installing the Rack Mount Kit
