NVIDIA DGX A100 Service Manual

4.2. Replacing the Motherboard Tray

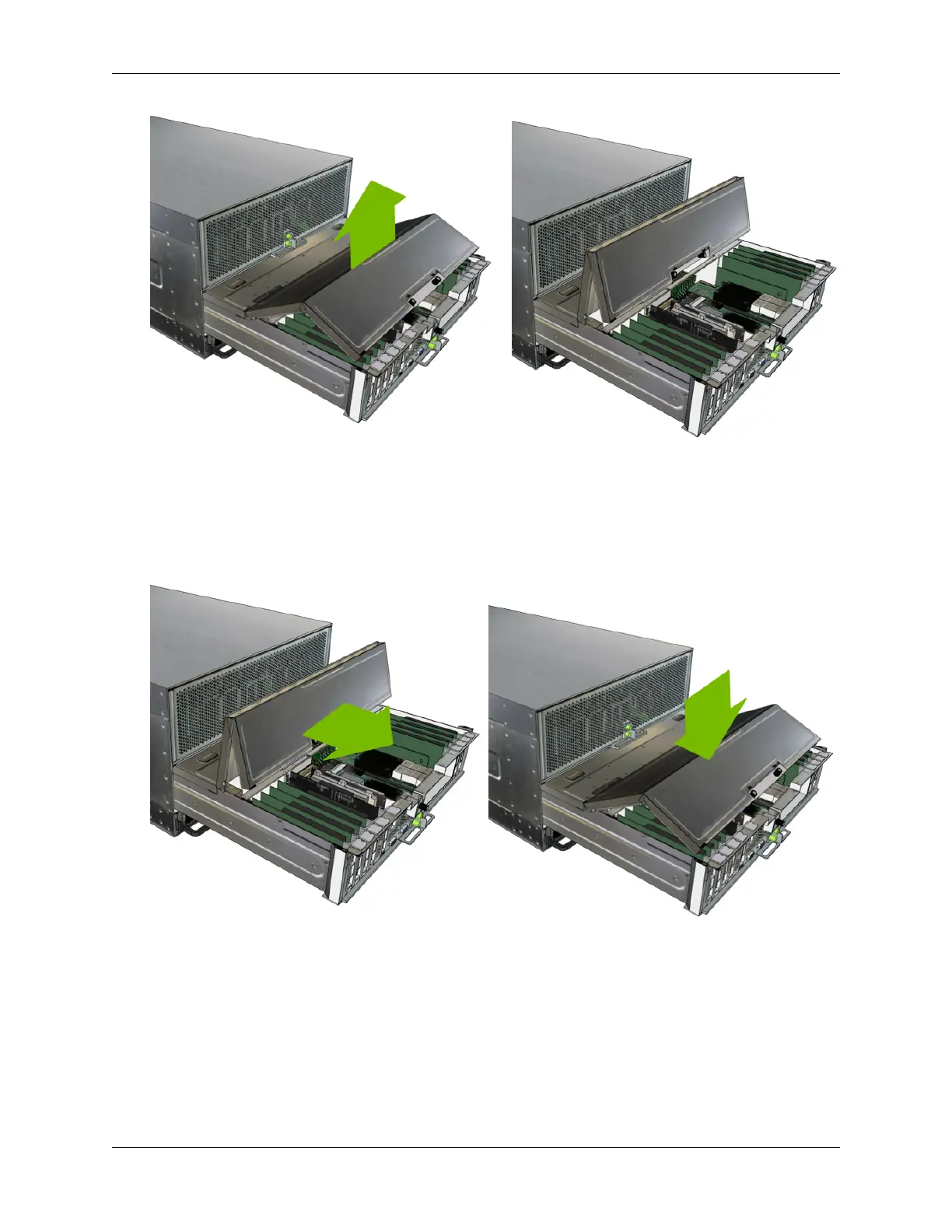

1. Close the lid to the motherboard tray.

2. Tighten the two thumbscrews and then push the motherboard tray into the system.

4.2. Replacing the Motherboard Tray 13
