NVIDIA DGX A100 Service Manual

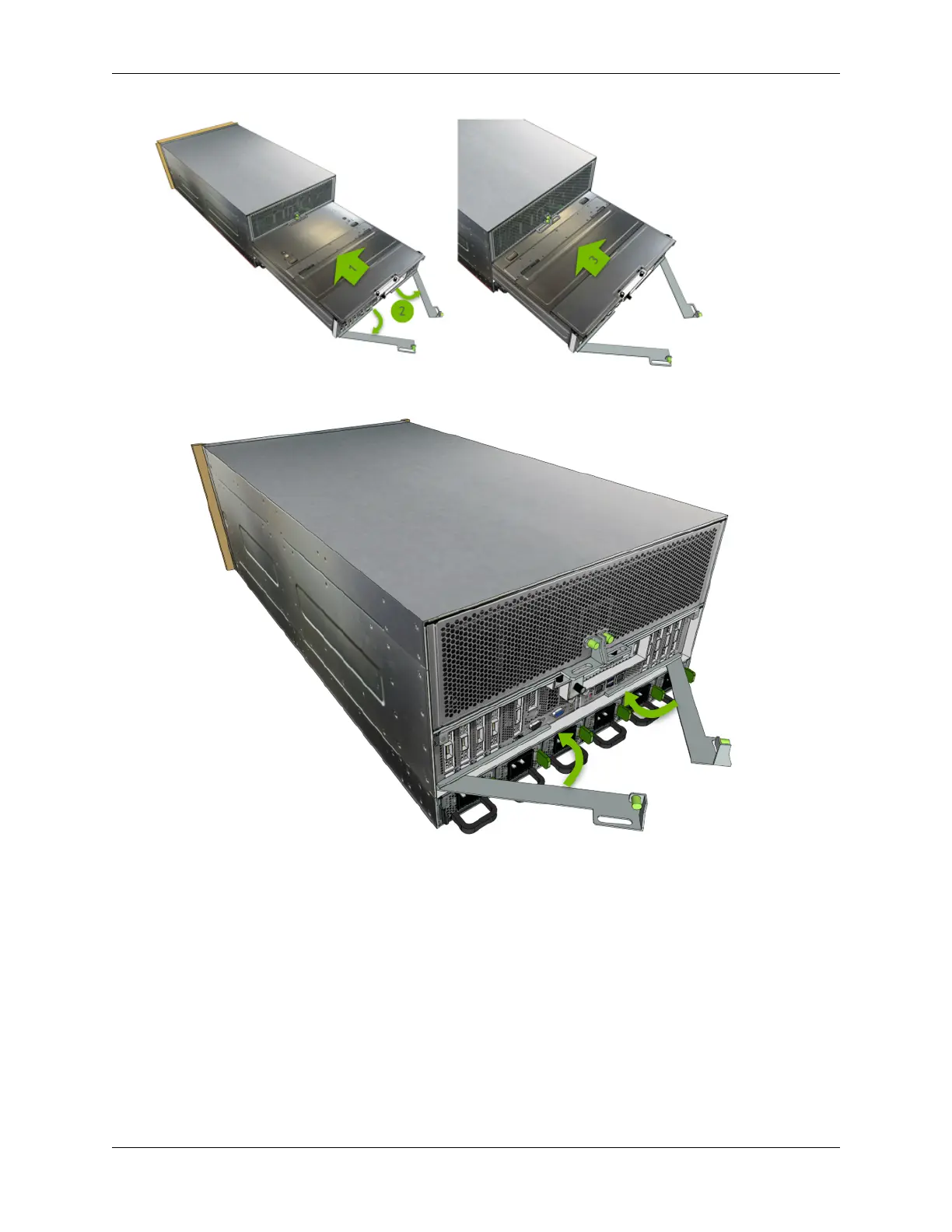

4. Close the handles to secure the motherboard tray in place.

5. Tighten the motherboard tray thumbscrews to complete the motherboard insertion.

5.2. Reinstalling the Motherboard Tray 23
