Clock tool example use case: Configure eMIOS to 60 MHz PLL1 with MPC5777C_264MHz
MPC5777C Clock Calculator Guide, Rev. 1, 12/2018
NXP Semiconductors 17

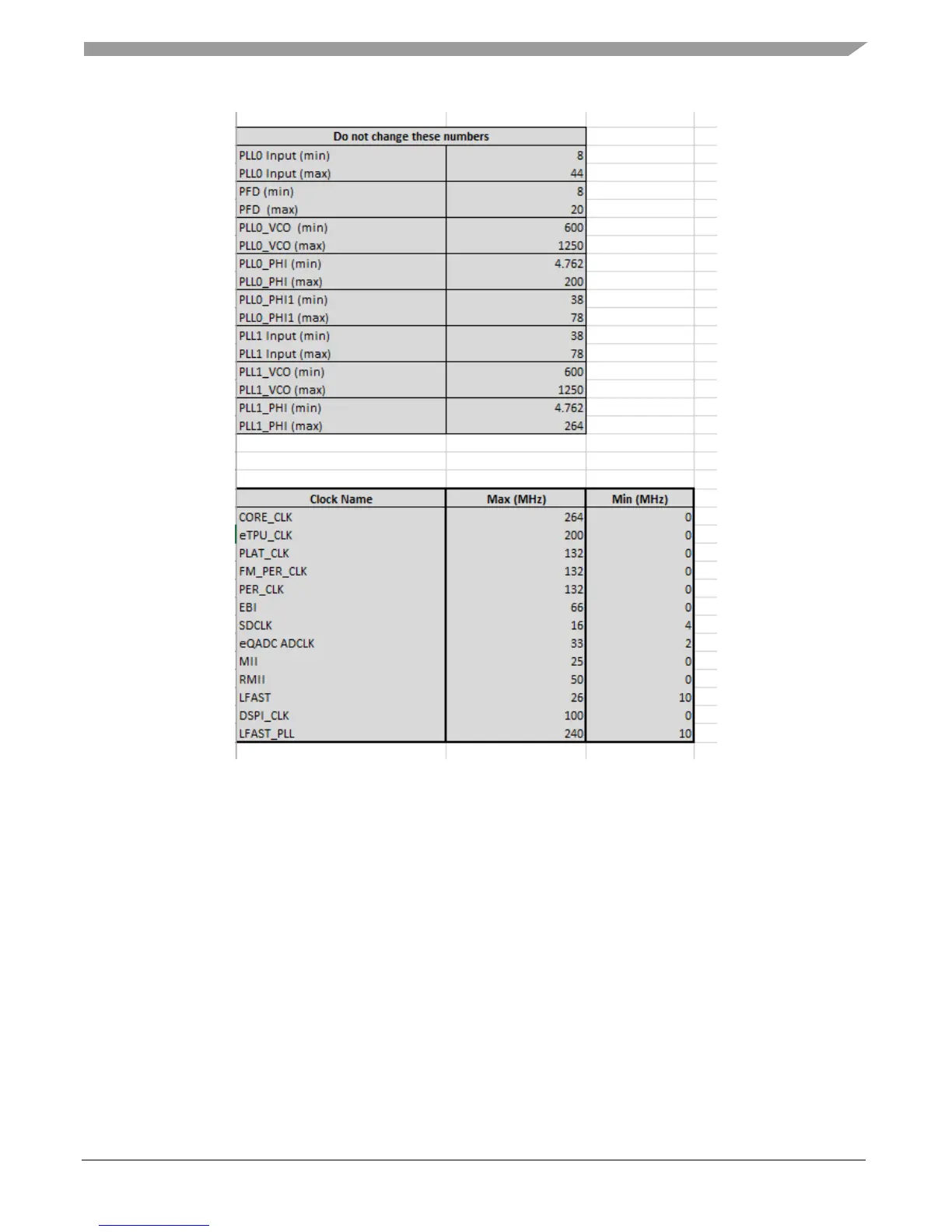

Figure 20. MPC5777C Frequency limits
3. Clock tool example use case: Configure eMIOS to 60
MHz PLL1 with MPC5777C_264MHz
The following sections presents an example application of the MPC5777C Clock Calculator. This
application note’s example will configure eMIOS0’s clocks to 60 MHz. The example will not only show
the correct configurations but also how the tool responds if improper configurations are attempted.
When configuring clocks for a module, start at Peripheral Domains. As shown in the following figure,
eMIOS0 follows only PER_CLK for both the bus interface unit and module clock.
