Clock tool example use case: Configure eMIOS to 60 MHz PLL1 with MPC5777C_264MHz
MPC5777C Clock Calculator Guide, Rev. 1, 12/2018
18 NXP Semiconductors

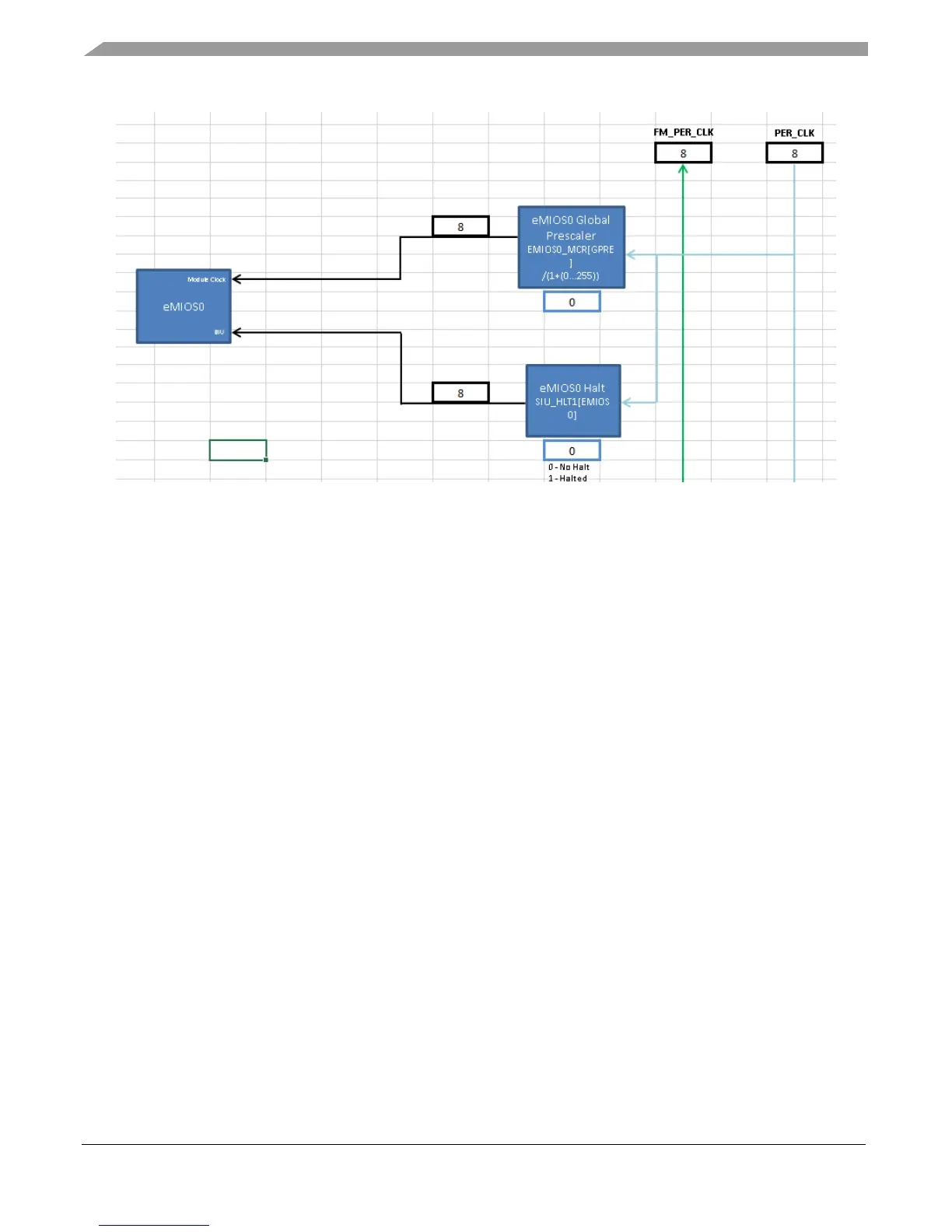

Figure 21. eMIOS0 clocks
PER_CLK is currently 8 MHz. If a module uses multiple clock domains, configuring the clock
calculator can be done in any order.
3.1.
Select the device
First choose the correct the device. Go to Device Select and set the device to MPC5777C_264MHz.
This ensures that the MPC5777C Clock Calculator will use the spec sheet corresponding to the 264
MHz variant.
