Clock calculator design
MPC5777C Clock Calculator Guide, Rev. 1, 12/2018
4 NXP Semiconductors

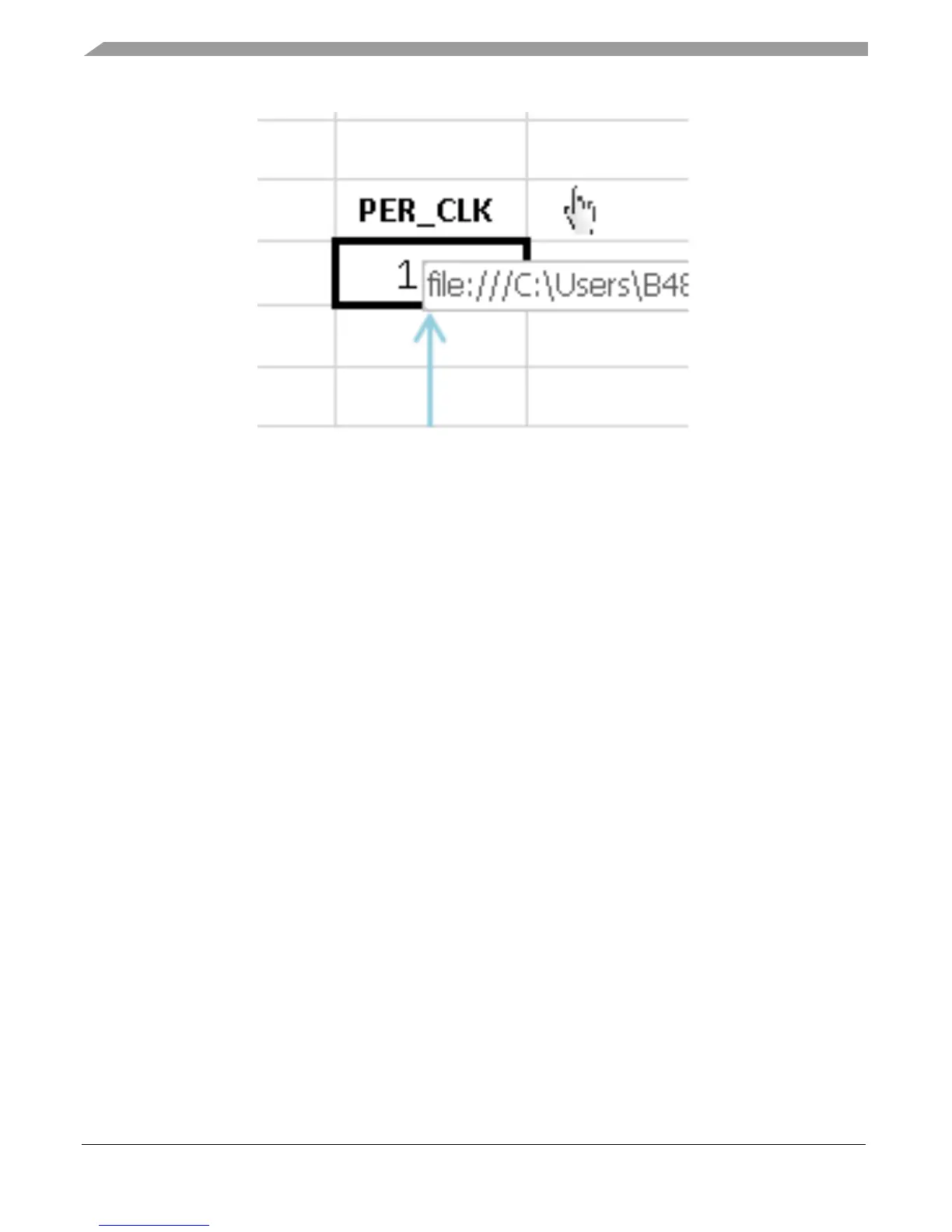

Figure 4. Clicking on a link
The following subsections will explain in depth the purpose of each tab.
2.1.
Tree
Tree is the centerpiece of the tool. This tab is the starting point for all clock frequency calculations. It is
organized to resemble the MPC5777C clock tree as presented in the following figure.
