Clock calculator design
MPC5777C Clock Calculator Guide, Rev. 1, 12/2018
10 NXP Semiconductors

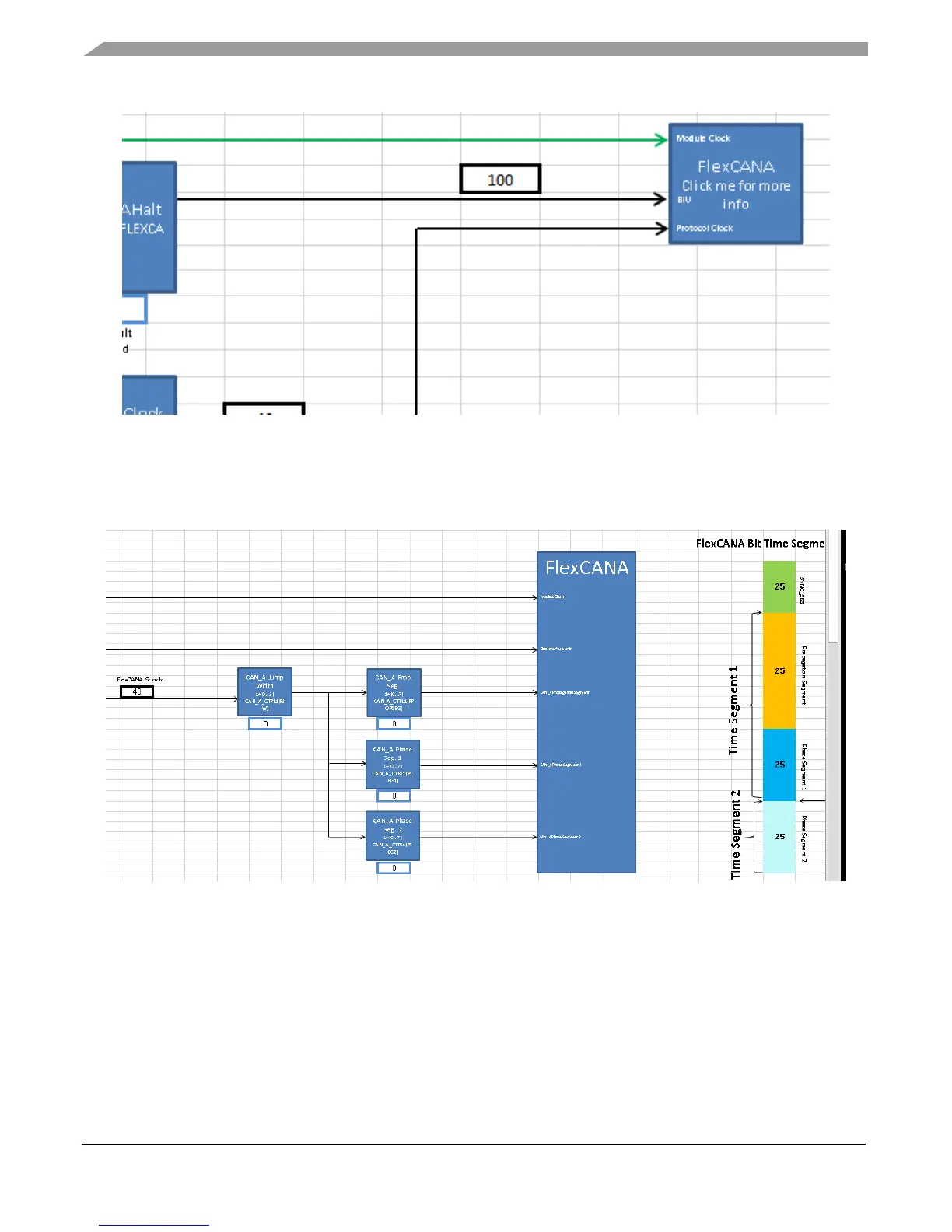

Figure 11. FlexCAN in Peripheral domains
FlexCAN clocking and MCAN clocking provides options to configure the bit time segments, as shown in
the figure below. The column on the right-hand side of the diagram shows the breakdown, in
nanoseconds, of a CAN bit time, as configured by the FlexCAN or MCAN.
Figure 12. FlexCAN clocking
2.6.
LFAST clocking
The LFAST is the third module that has its own tab. It is a versatile, but intricate module that hosts its
own PLL which generates multiple phases and generates a signal within specification only if its inputs
are certain frequencies. These intricacies make it necessary to give LFAST its own dedicated tab.
LFAST clocking presents a block diagram of the module with various clocks going into it. It also
supports LFAST_PLL configuration to increase the LFAST frequency up to 480 MHz. The LFAST also
