Connectors
Viewing Pictures on a Television Screen
Any pictures that you can view on the Nytech DC-8200 display [12] can
also be played back on a regular TV set. For this, your television set must
have an appropriate Video In connector.

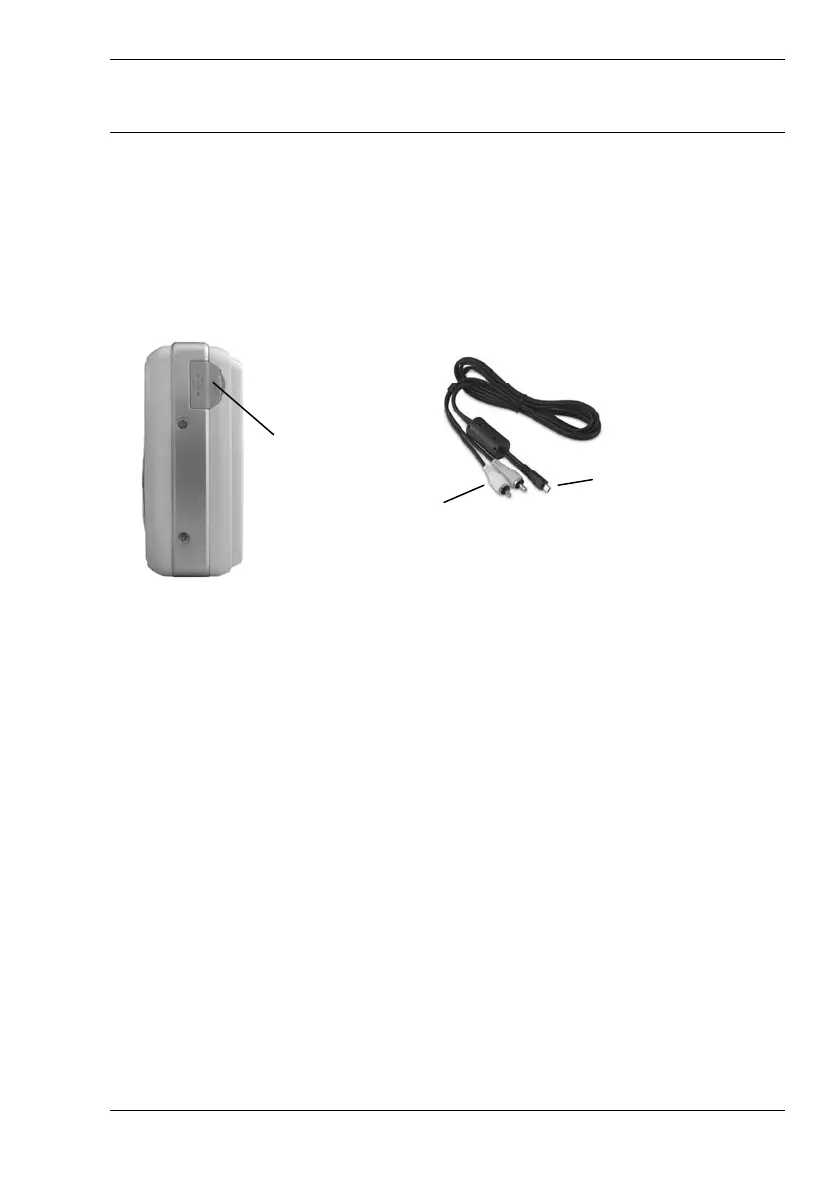

Use the supplied AV cable to connect the product to a television set.
AV cable
Connection port
Connector
AV connection jack (video – yellow, audio - white)
1. Power your Nytech DC-8200 off.
2. Open the port cover (see the above figure) and insert the AV cable
connector into the connection port of your camera.
3. Insert the AV connector into the corresponding inputs of your TV
set (yellow connector to VIDEO IN, white connector to AUDIO IN).
Please also consult your TV set’s User Manual for more
information.
4. Select the AV channel corresponding to the above input connectors
on your TV set. This is a device-specific setting. If necessary, read
the User Manual of your TV set for more information on how to do
this.
5. Power the camera on in Playback mode by pressing and holding
the Play button [5] for approx. 1 second.
The display [12] on the Nytech DC-8200 will remain off while the AV cable
is connected to the AV port. Instead, the pictures will be played back on
