Instruction Manual CON 11/110

56

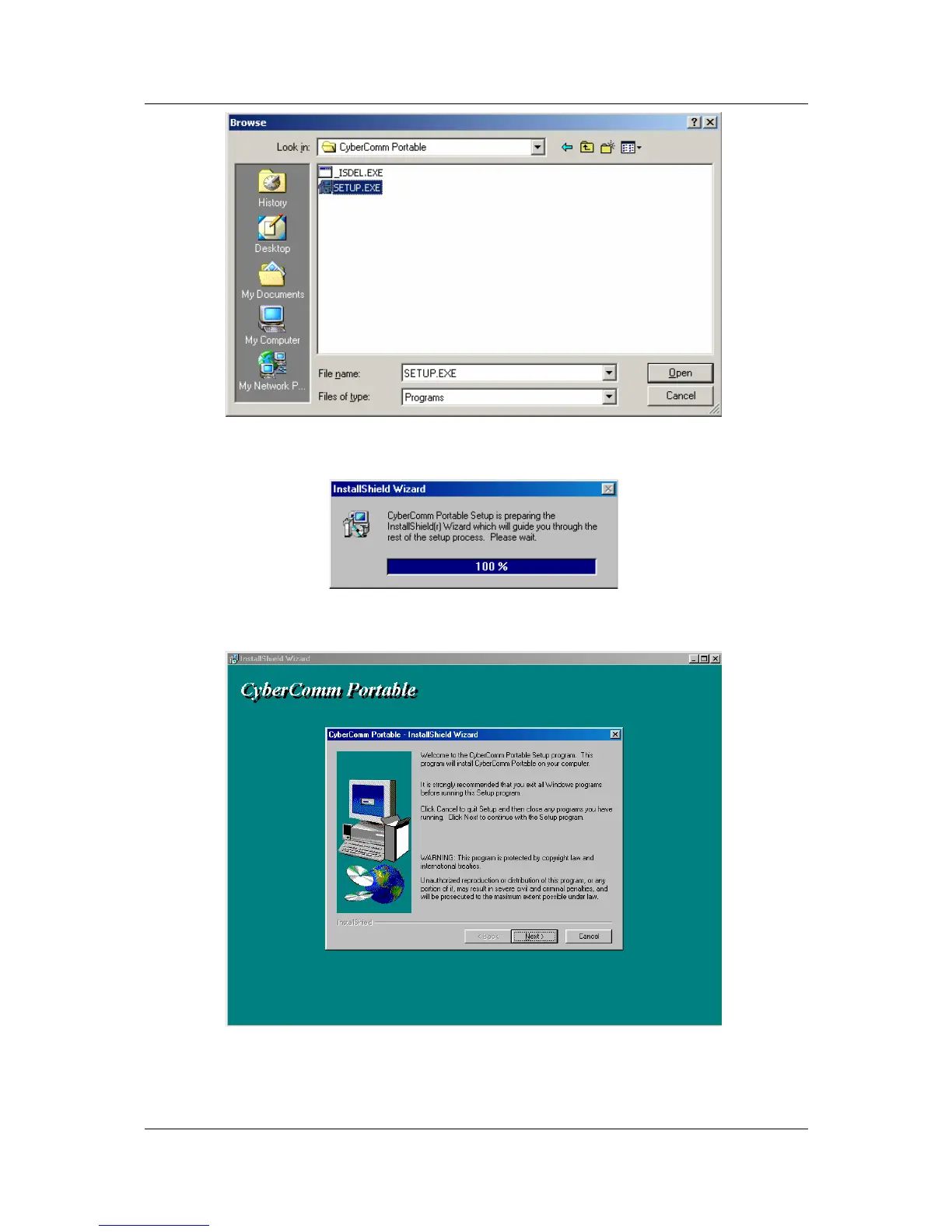

Figure 51: Select "SETUP.EXE" program and click the OPEN button

Figure 52: InstallShield Wizard dialog box appears.

Figure 53: Click on Next button
