Instruction Manual CON 11/110
5
3 PREPARATION
3.1 Inserting the Batteries
This meter is packaged with 4 “AAA” alkaline batteries required for its operation. To
insert the batteries into the meter, follow the procedure outlined below.
1. Open the battery compartment by pressing down the catch of the battery
cover.
2. Insert the batteries correctly according to the marked polarity of the battery
compartment.
3. Close the battery cover, ensuring the catch is locked in position.
Your hand held meter is now ready for operation.

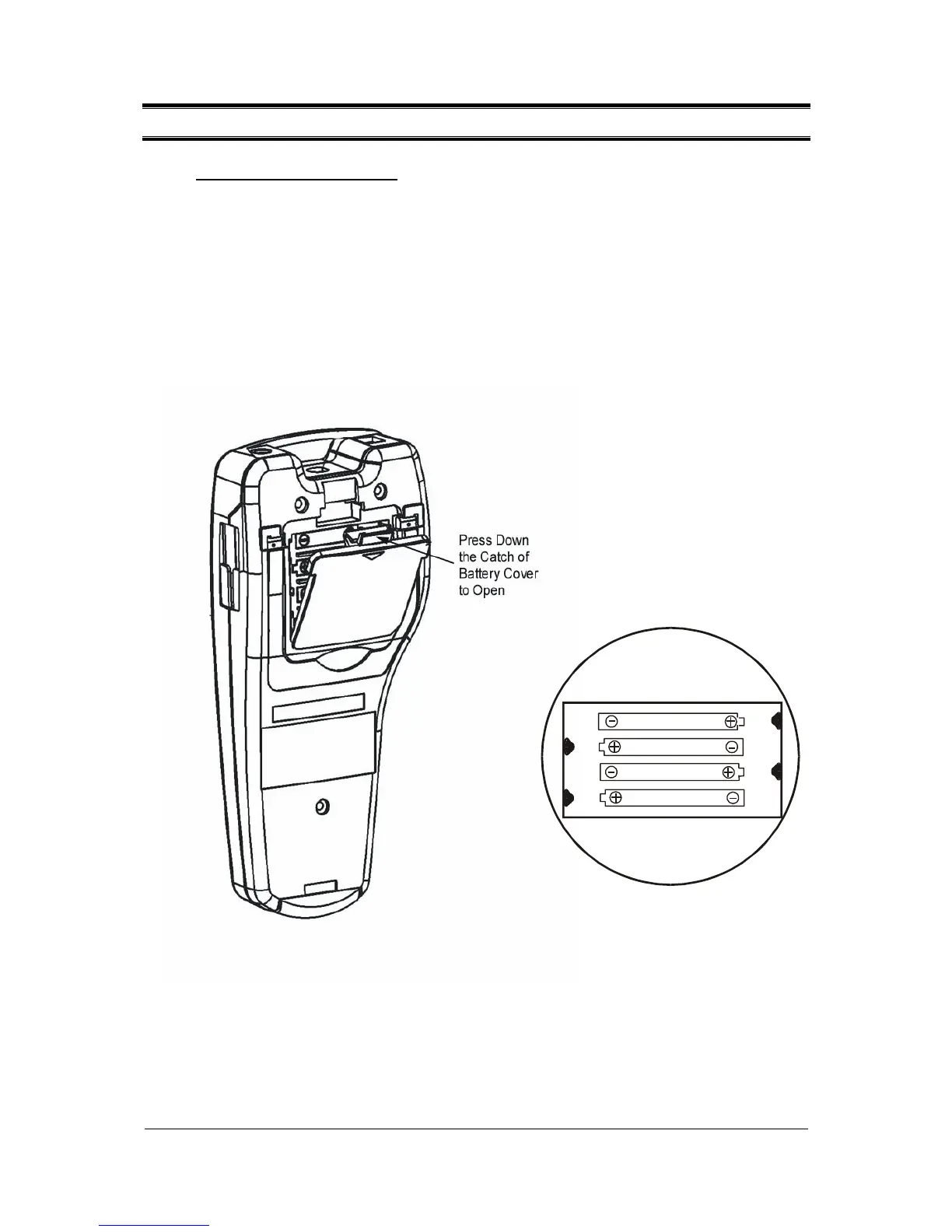

Figure 3: Open Battery Cover
Figure 4: Note Battery
Polarity
LR03 'AAA' (AM4)
MADE IN S'PORE
