Oasis CO33R - Side Section Dimensional and Layout Features

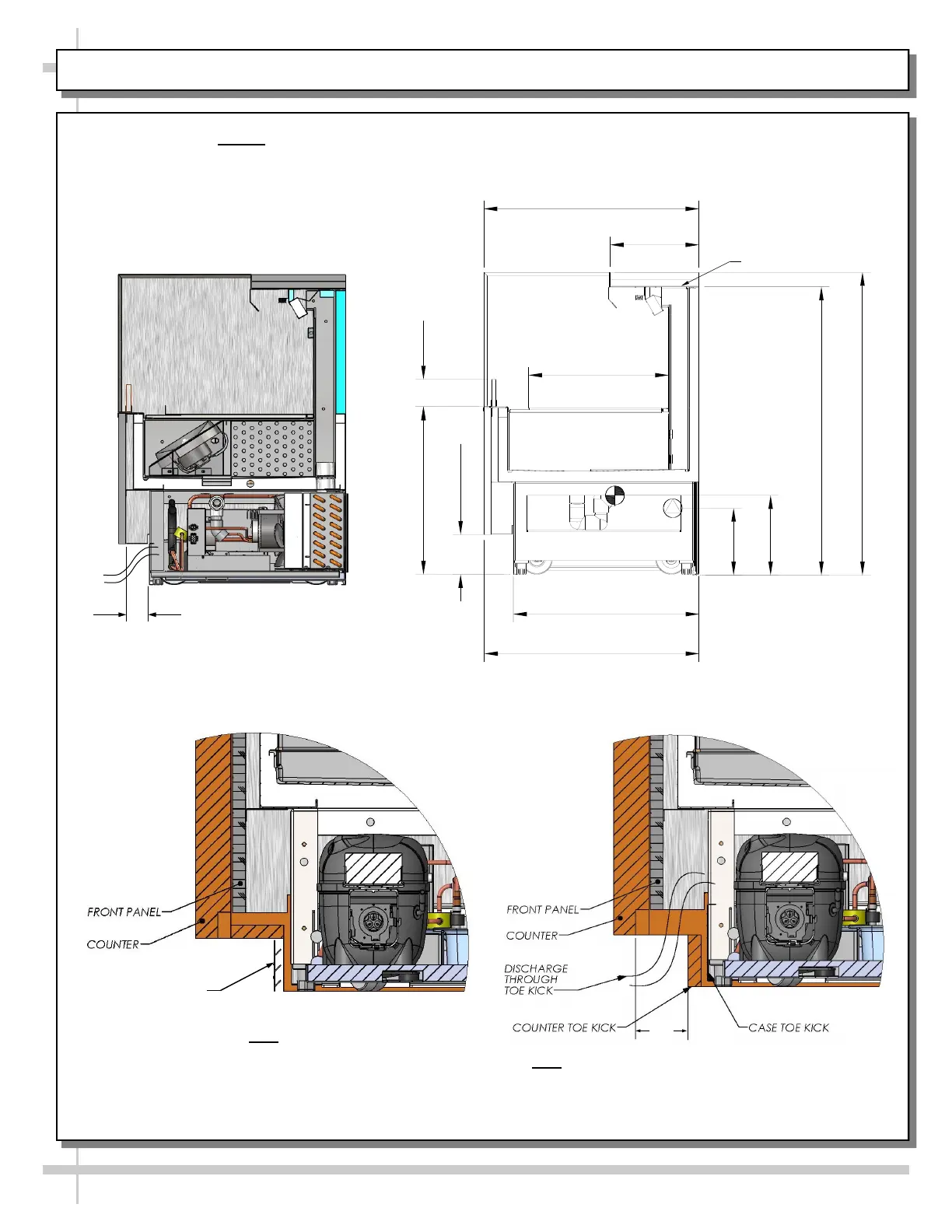

SIDE SECTION DIMENSIONAL AND LAYOUT FEATURES
15
--- Side Section Without O.E.M. Toe-Kick ---
15 5/8"
7 1/2"
8 7/8"
9 7/8"
24"
33 3/4"
20 3/4" TOE-KICK
24"
4 1/2"
18 3/4"
3"
32 1/8" TO COUNTER BTM
COUNTER
--- Side Section With Full Dimensions ---
Note: Above Illustration May Not
Exactly Reflect Every Feature or
Option of Your Particular Case
--- Side Section ---
3” MINIMUM
--- Side Section With O.E.M. Toe-Kick ---
3.00
Note: Above Illustration May Not Exactly Reflect Every
Feature or Option of Your Particular Case
NOTE: THE FOLLOWING COUNTER INSTALLATION INFORMATION
PERTAINS ONLY TO MODELS CO3324R, CO4324R, CO5324R and CO6324R
DISCHARGE THROUGH
CUSTOMER SUPPLIED
COUNTER TOE-KICK
