30
REFRIGERATION - EVAPORATOR AREA: MODELS CO3434RG.5716, CO3034RG.5718 & 5718A, ETC.
1. Evaporator Fan Access
• Remove lower decking.
• Lift decks straight up and out to avoid scratching
insides of case while removing decks.
2. Balancing Valve / Sweat Valve Access
• Balancing valve and sweat valve becomes
accessible upon removal of decking.

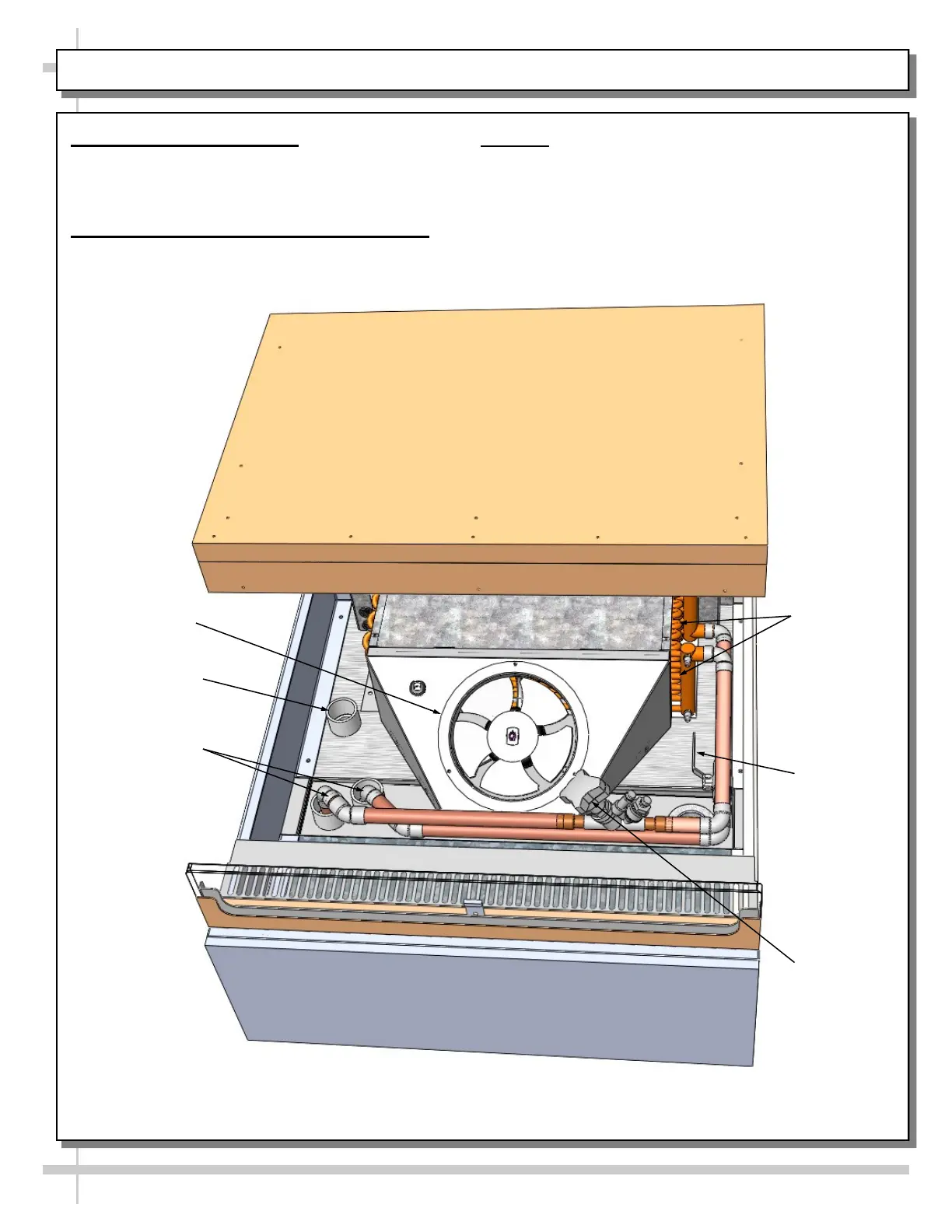

Above Illustration Shown With End Panel and
Decking Removed For Illustrative Purposes
Evaporator
Fan Shroud
3. Drain
• Drain is located at front right side of as shown
below.
• Access to drain may also be gained by removing
evaporator fan shroud.
Refrigeration
Lines
Evaporator
Coils
Wiring Route
Balancing
Valve
Sweat Valve
To Next Page
