REFRIGERATION - CONDENSATE PACKAGE ILLUSTRATED PARTS BREAKDOWN (CO**R)
Refrigeration Fundamentals, Continued

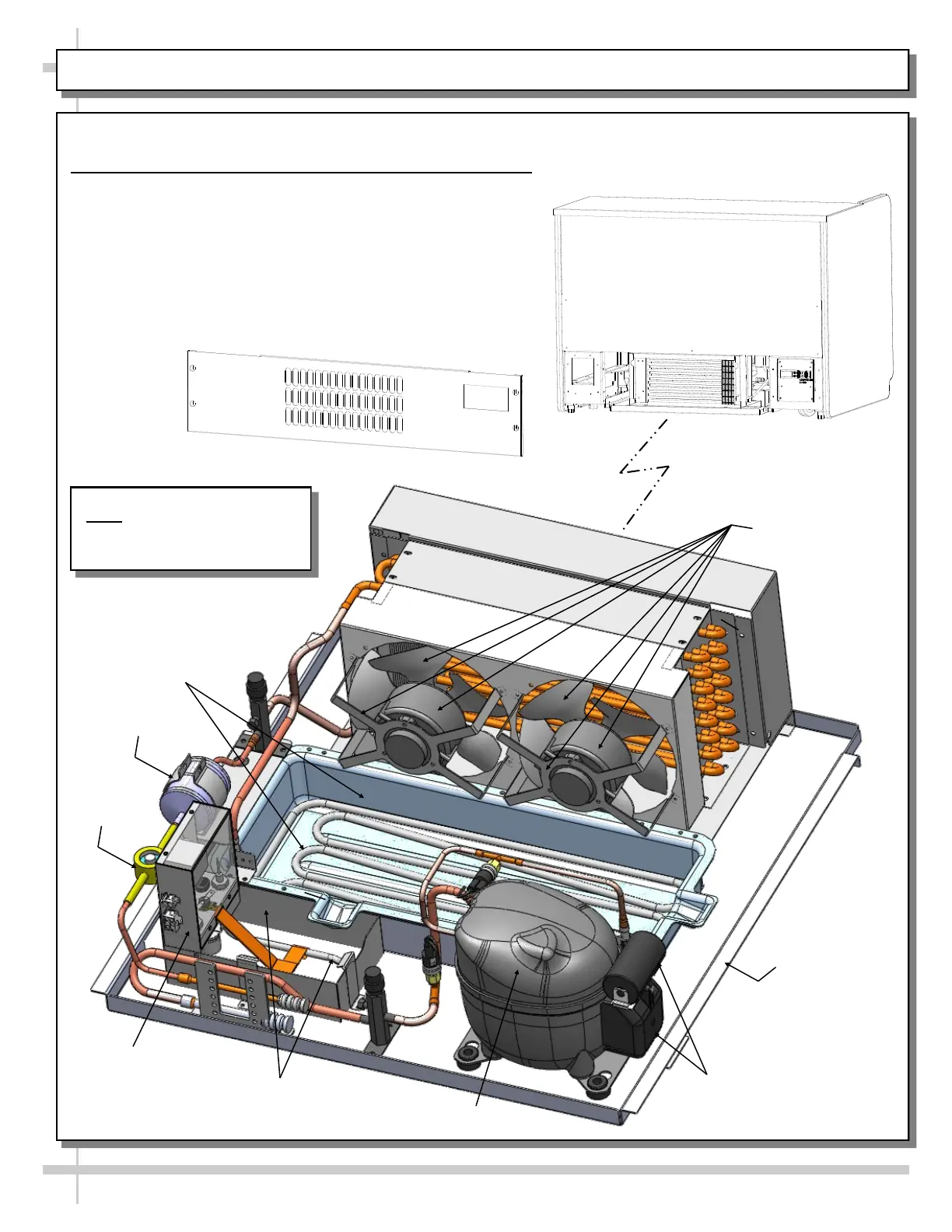

4. Condensate Package Illustrated Parts Breakdown
• Assembly or disassembly and servicing to be
accomplished by licensed refrigeration contractor.
• After rear grille has been removed, slide condensate
package out slowly and carefully.
• After service, slide back under case. Return rear grille
to case and attach with four (4) retaining screws.
• See previous page for screw removal illustration.
Sight Glass
Filter Drier
Compressor
Condensing Fans,
Motors & Brackets
Overflow Evaporator
Pan and Coil
Hot Gas Condensate
Pan & Serpentine
Rods
Overflow
Electrical Box
Condensate
Package Pan
Compressor Start
Components
Note: Condensate Package
Is Shown Rotated For
Illustrative Purposes
Rear Grille
