MAINTENANCE - ELECTRICAL ACCESS AND COMPONENTS
Electrical: Access and Components
Warning, disconnect power before providing
maintenance and service to unit.

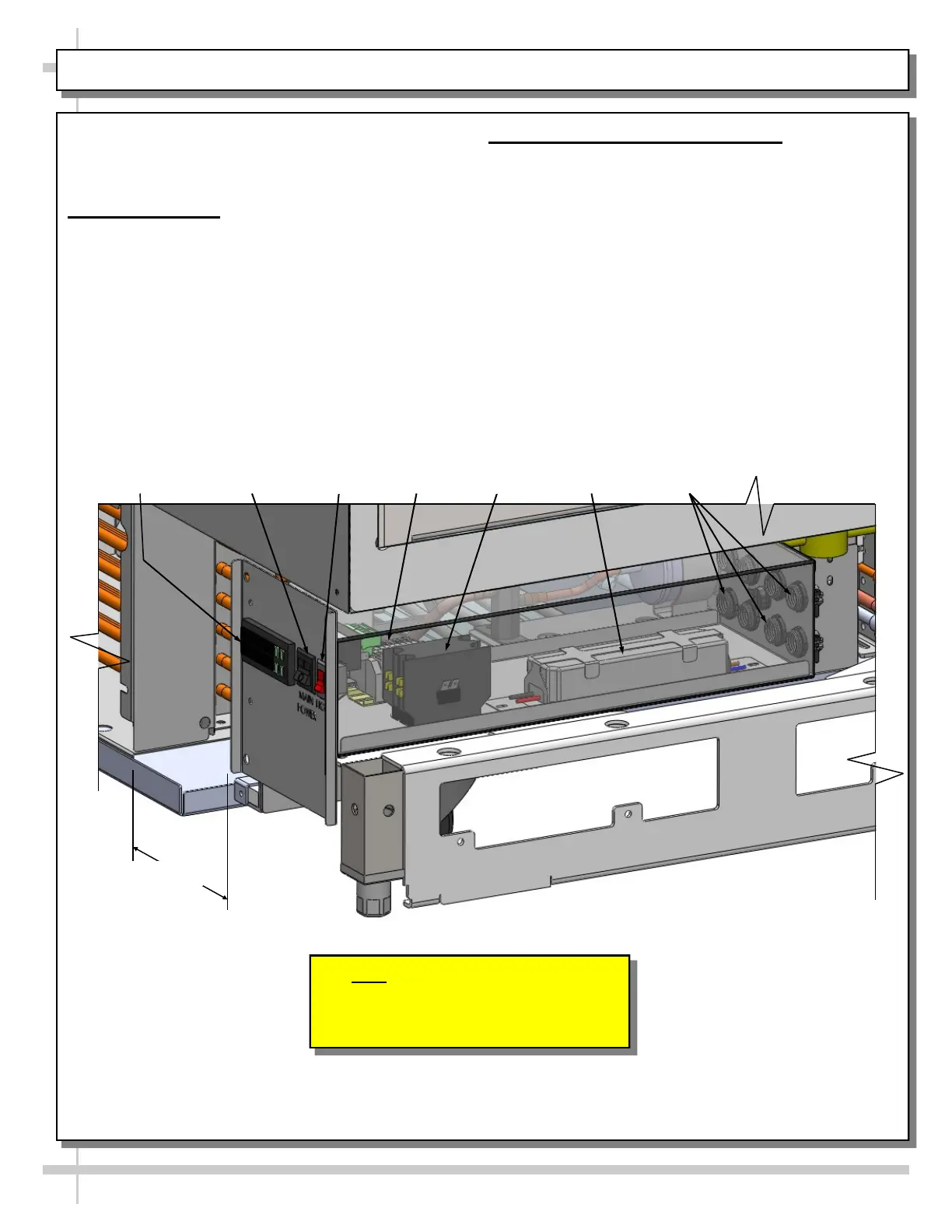

1. Ballast Access
• A 6 1/2” space is provided at case rear to access
electrical components (between refrigeration
package and temperature controller plate).
• Electrical components such as terminal block,
contactor, and ballast are in main electrical box.
Temperature
Controller
LED Light
Ballast
Field Wire
Routes
Main Power
Rocker
Switch
2. Temperature & Defrost Control
• The case temperature is set at the factory, as
determined by the case size. The temperature is
controlled by a thermostat. If a temperature
setting change is required, follow the instructions
in the Temperature Controller section of manual.
• If service is required to the temperature control
unit, call Structural Concepts. This maintenance
should be performed by a certified technician.
Light
Switch
Terminal
Block Contactor
6 1/2”
Note: Above Illustration Reflects
REAR ACCESS Condenser Package.
Optional FRONT ACCESS Condenser
Package Has Similar Electrical Layout.
