REFRIGERATION - EVAPORATOR AREA: MODELS CO43RM / CO63RM (AND SIMILAR UNITS)
1. Evaporator Fan Access
• Remove milk crates and lower decking.
• Lift decks straight up and out to avoid scratching
insides of case while removing decks.
2. Thermostatic Expansion Valve Access
• TXV is accessible upon removal of decking.
• See illustration below.
3. Drain
• Drain is located at center of tub (under TXV).
• Access trough by removing evaporator fan shroud.
Product Stop
Deck Pan
Milk Crates

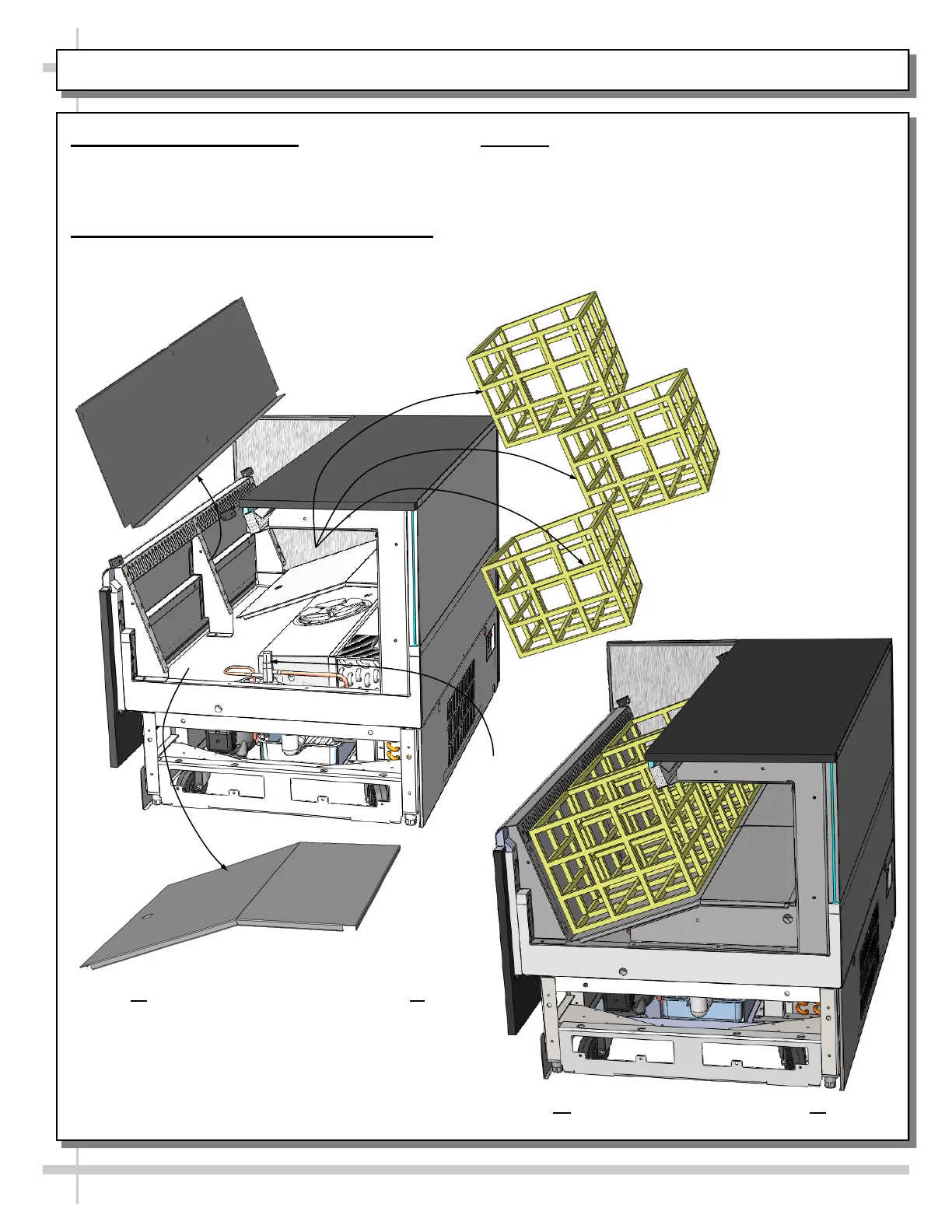

Case Shown With Deck Pans,
Product Stop & Milk Crates Intact
Case Shown With Deck Pans,
Product Stop & Milk Crates Removed
TXV
To Next Page
