REFRIGERATION - CONDENSATE PACKAGE (CO3436RG.5716 / CO3034RG.5718 / CO3034RG.5718A)
Refrigeration Fundamentals, Continued

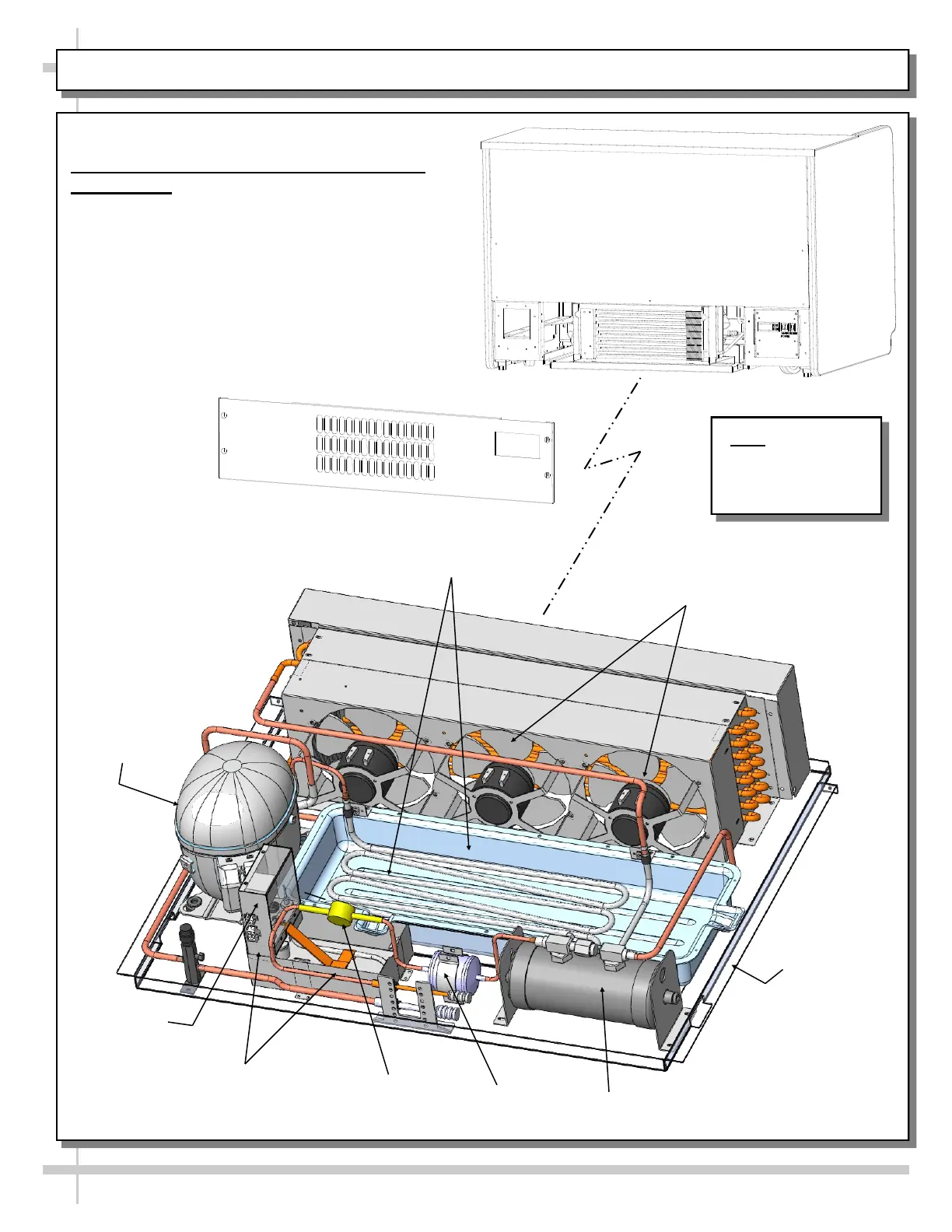

5. Condensate Package Illustrated Parts
Breakdown
• Assembly or disassembly and servicing to
be accomplished by licensed refrigeration
contractor.
• After rear grille has been removed, slide
condensate package out slowly and carefully.
• After service, slide back under case. Return
rear grille to case and attach with four (4)
retaining screws.
Filter Drier
Receiver
Condensing Fans,
Motors & Brackets
(Typical)
Overflow Evaporator
Pan and Coil
Hot Gas Condensate
Pan & Serpentine Rods
Overflow
Electrical Box
Condensate
Package Pan
Note: Condensate
Package Shown
Rotated For
Illustrative Purposes
Rear Grille
Compressor
Sight Glass
