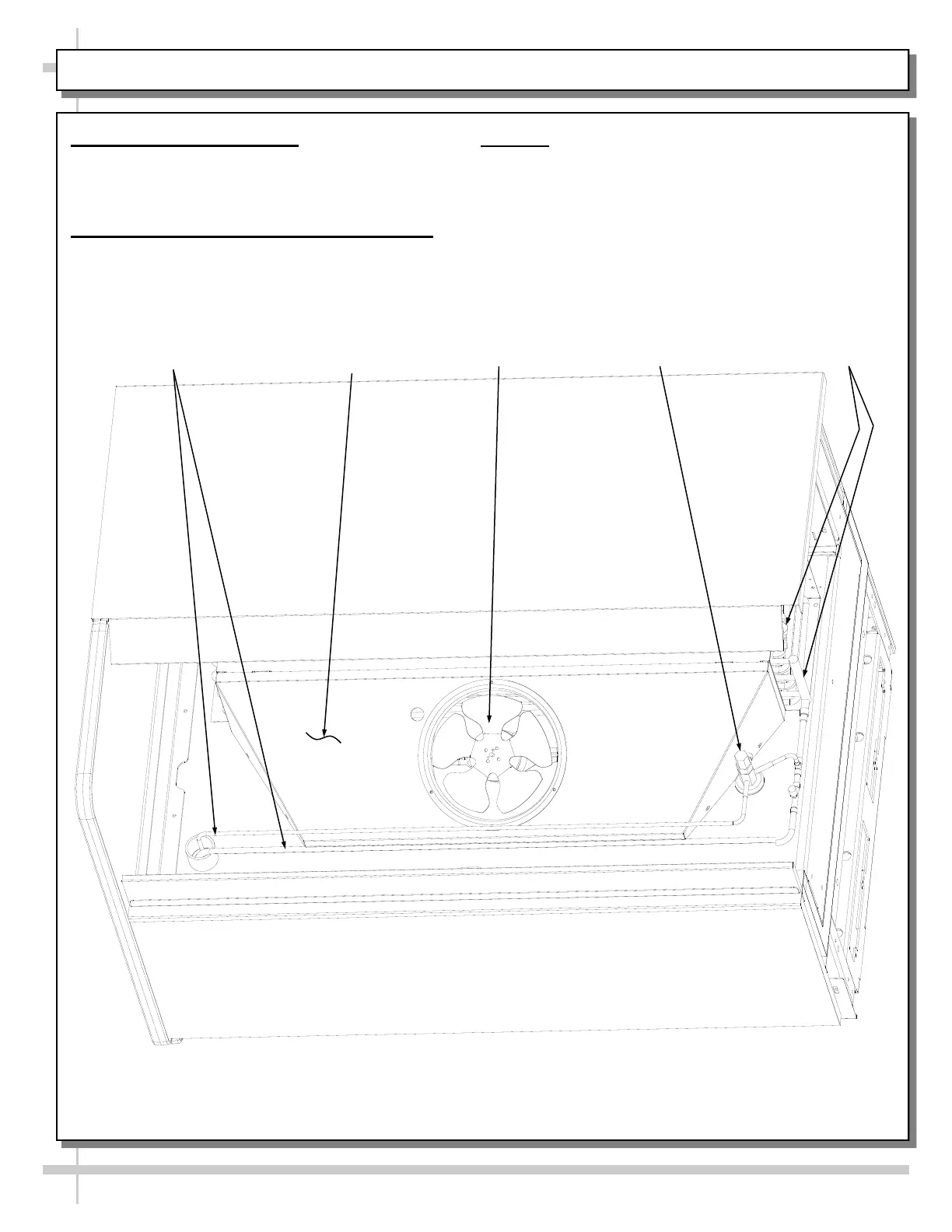

REFRIGERATION - EVAPORATOR AREA: MODELS CO33R / CO43R / CO53R / CO63R
1. Evaporator Fan Access
• Remove lower decking.
• Lift decks straight up and out to avoid scratching
insides of case while removing decks.
2. Thermostatic Expansion Valve Access
• TXV also becomes accessible upon removal of
decking.
Above Illustration Shown With End Panel and
Decking Removed For Illustrative Purposes
Evaporator Fan
Evaporator
Fan Shroud
3. Drain
• Drain is located at center of tub (under evap. fan).
• Access to drain may also be gained by removing
evaporator fan shroud.
TXV
Refrigeration
Lines
Evaporator
Coils
