Oasis CO33R - Case Top and Underside Dimensional and Layout Features

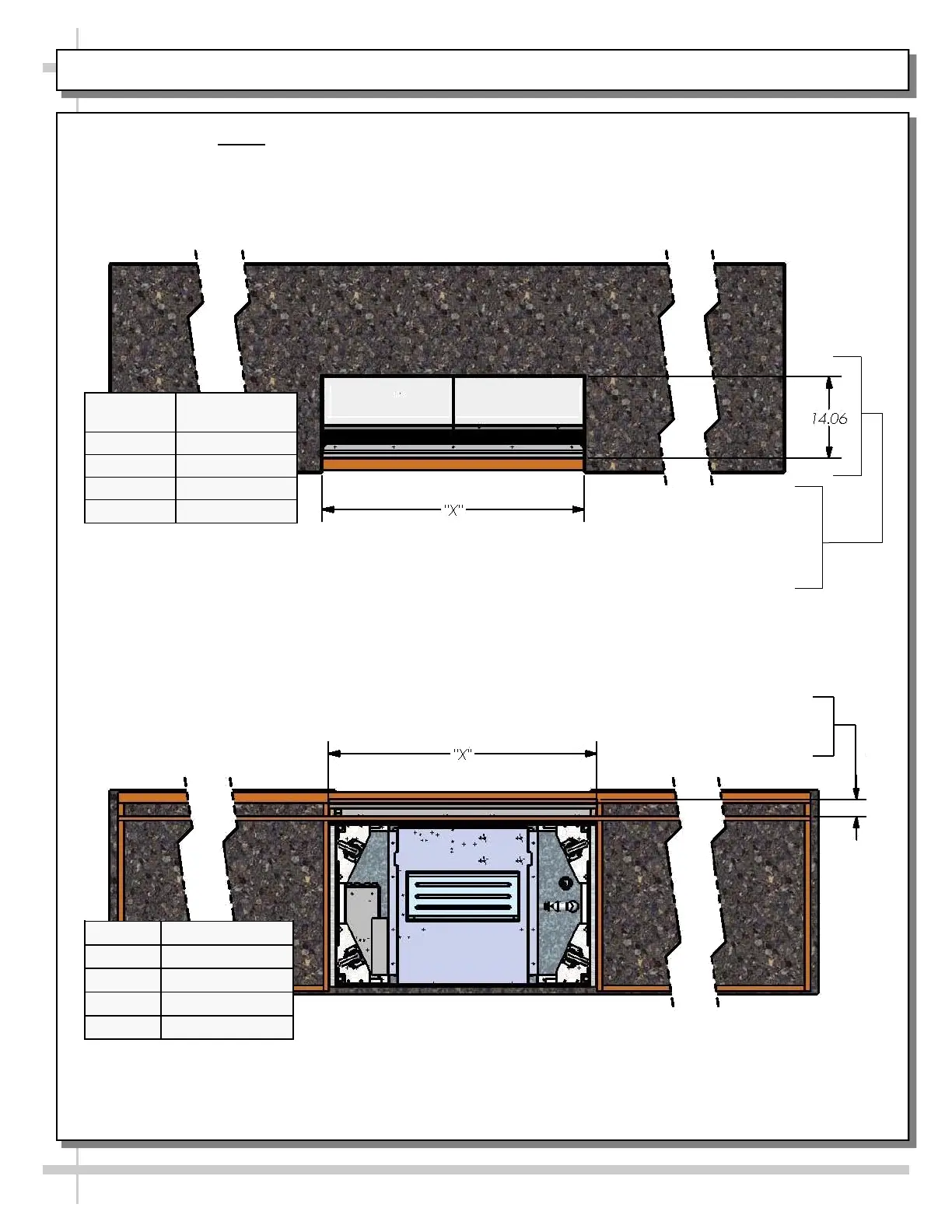

CASE TOP AND UNDERSIDE DIMENSIONAL AND LAYOUT FEATURES
16
--- Case Top ---
TO FRONT OF DISPLAY;
NOT INCLUDING THE
WALL & WITH COUNTER
EXTENDED IN FRONT
OF TOP BOARD 1/16”
--- Case Underside ---
3.00 MINIMUM
OPENING ABOVE
TOE-KICK
NOTE: THE FOLLOWING COUNTER INSTALLATION INFORMATION
PERTAINS ONLY TO MODELS CO3324R, CO4324R, CO5324R and CO6324R
CASE
MINIMUM “X”
DIMENSION
CO3324R 34”
CO4324R 45”
CO5324R 57”
CO6324R 69”
CASE “X” DIMENSION
CO3324R 36.25”
CO4324R 47.25”
CO5324R 59.25”
CO6324R 71.25”
