REFRIGERATION - FRONT CONDENSATE PACKAGE ACCESS (NO SCREW REMOVAL REQUIRED)
Refrigeration Fundamentals, Continued
3. Front Condensate Package Access -
No Screw Removal Required
• Assembly or disassembly and servicing of
condensate package is to be accomplished
by a licensed refrigeration contractor.

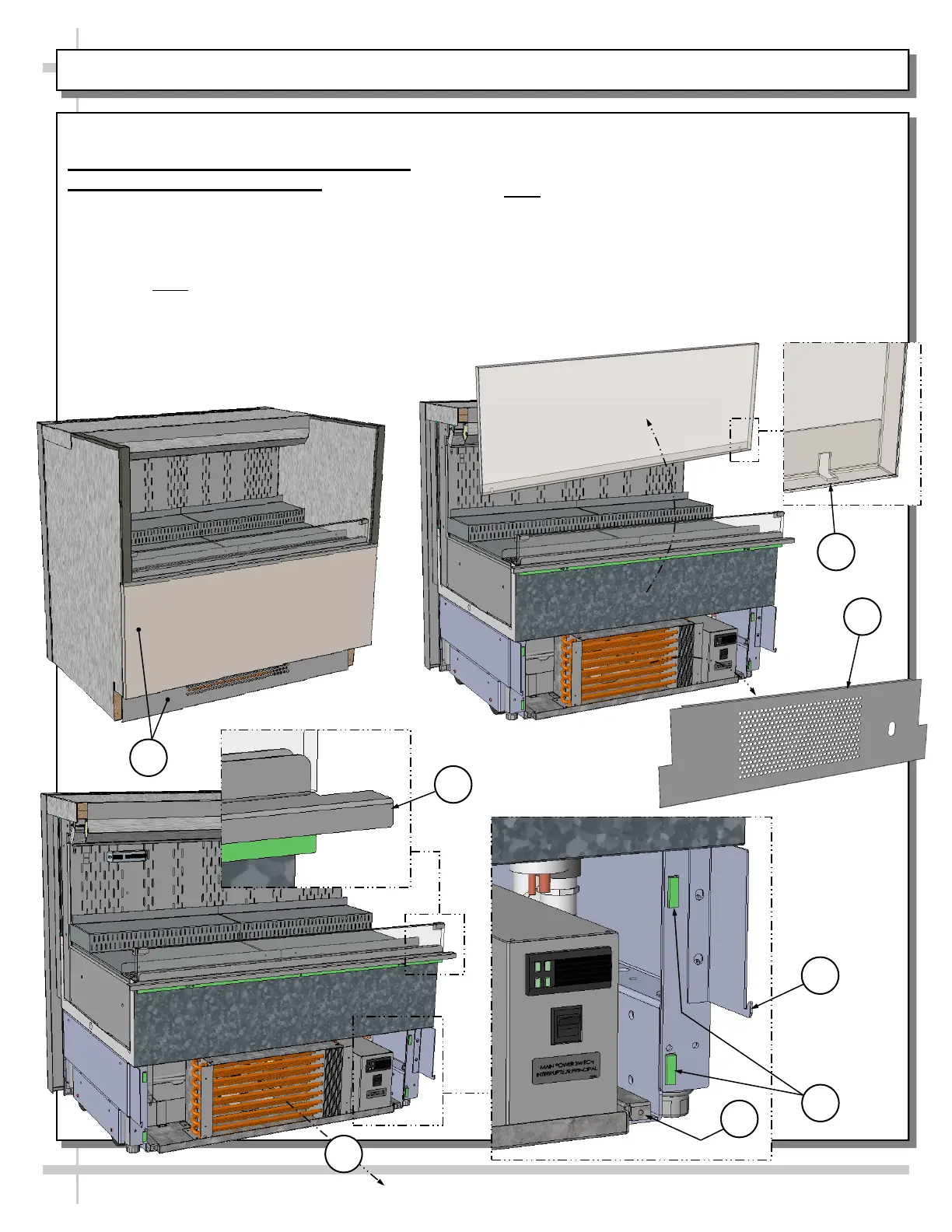

1. View of fully attached front panel and toe-kick/
front grille. Note: Model CO3324R.7654 is shown for
illustrative purposes only; your model may vary.
2A. Upper front panel bracket (for top of front panel
to be placed).
2B. Lower front panel’s slot (that rests on hooks at
both ends of case).
2C. View of hook that lower front panel rests on (typ.).
3A. Toe kick/front grille shown removed from case.
3B. View of magnets that toe-kick/front grille attaches
to. Note: Magnets are at both ends of case.
4. If shipment damage-prevention screws are intact,
they must be removed to slide condenser package
out from under case.
5. Carefully slide condenser package pan out from
under case to access various components.
>> Return all components to case in reverse order
they were removed.
1
2B
3A
2C
3B
2A
4
5
