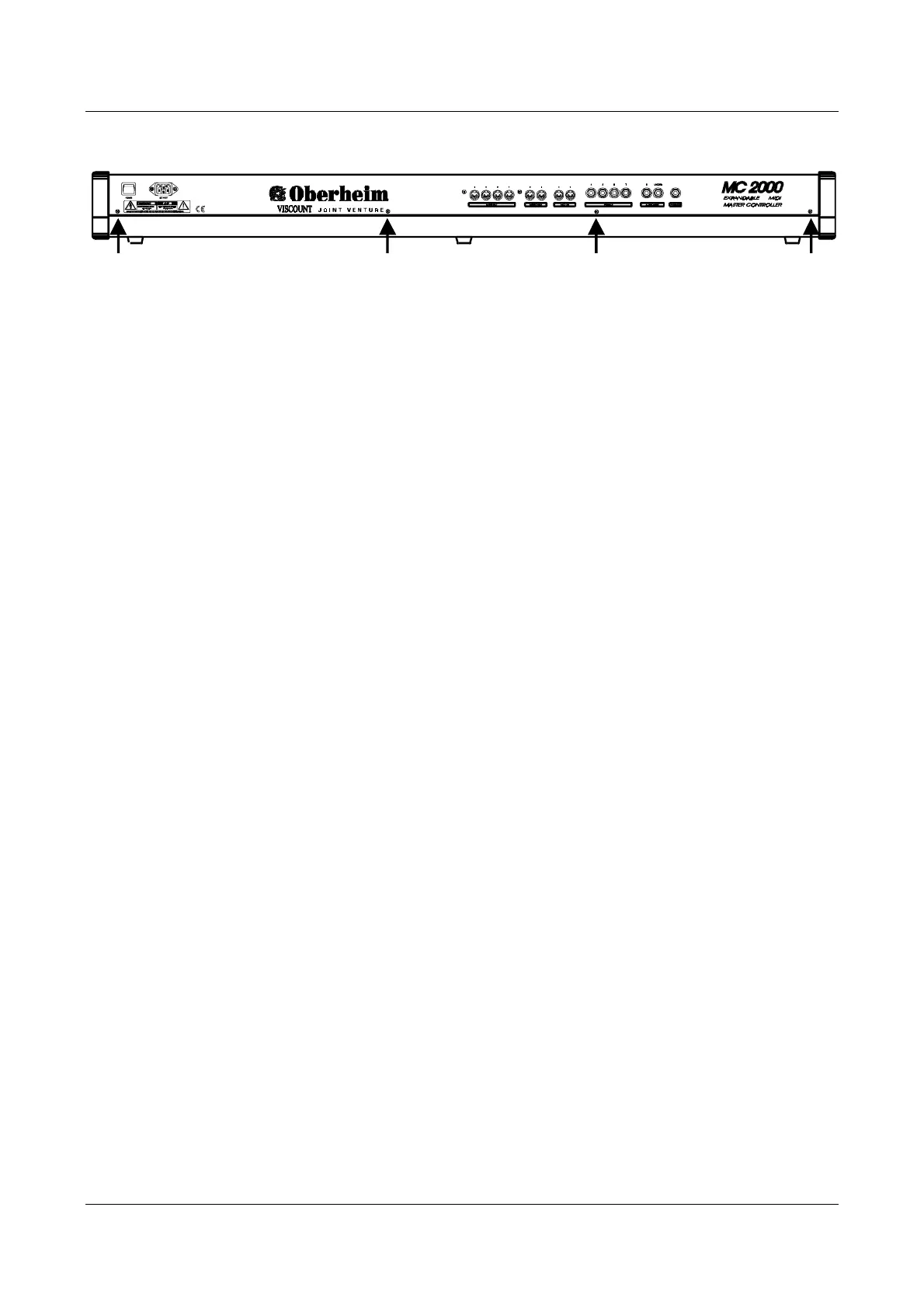

1.3.6. Rear panel elements
Moving from left to right, we find first the on/off switch and the mains connection. In the
centre there are 4
MIDI OUT
ports, 2
MIDI THRU
ports and 2
MIDI IN
ports, all
consecutively numbered.
The presence of 4 totally separate MIDI outputs means that data can be transmitted on 64
independent MIDI channels (16 for each port).
Continuing from left to right, we find 4 inputs for the pedals, 2 audio outputs for the optional
sound board, and the Phones output, also dedicated to the sound board, if installed.
