PIZZAFORM
Installation and connections
GB - 10
FIG. 2
FIG. 1
1
400 mm
400 mm
1000 mm
600 mm
DANGER
All operations described in this c hapter shall be
carried out by skilled technicians.

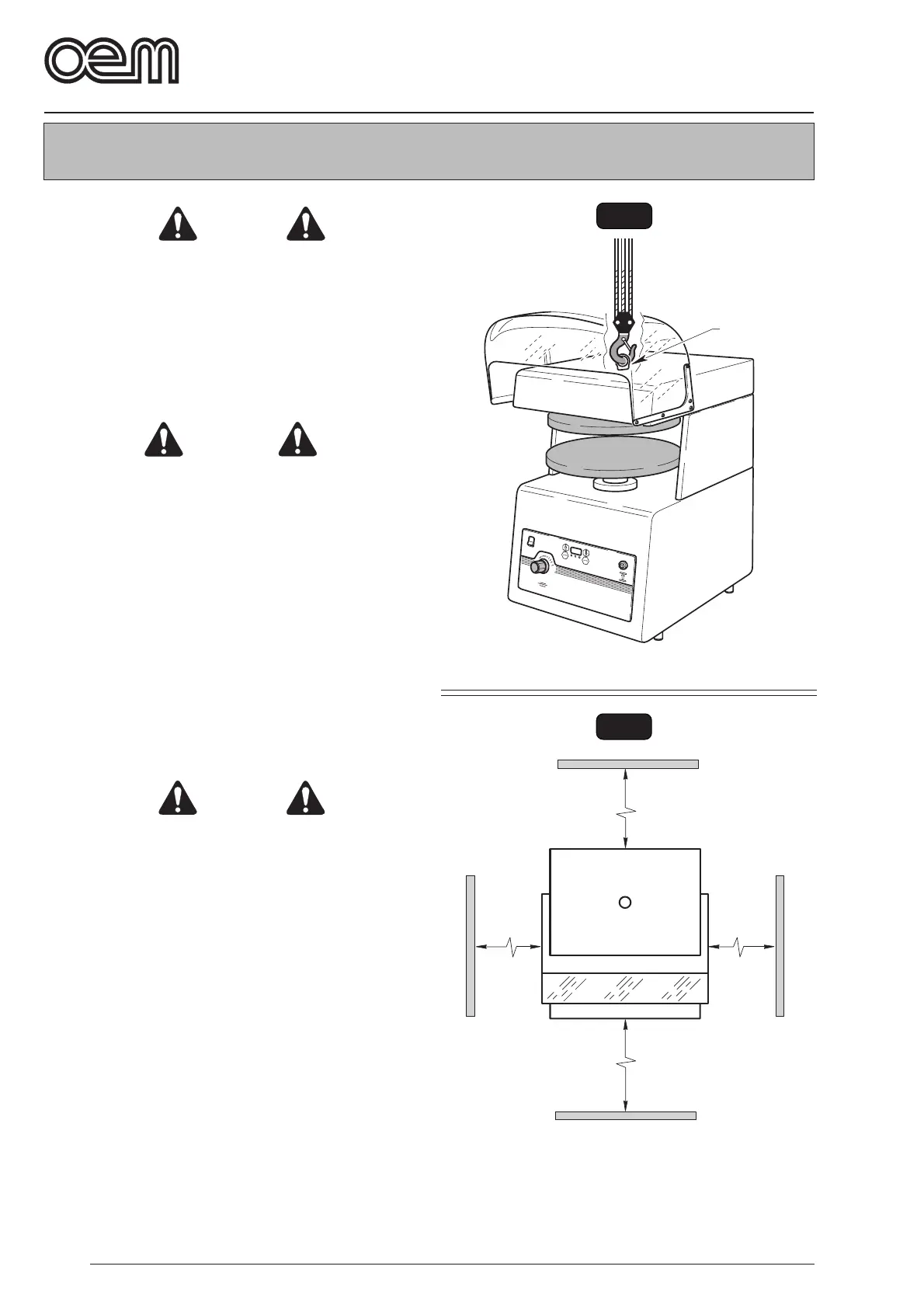

3.1 - LIFTING OF THE MACHINE (Fig. 1)
The machine shall be lifted by using a crane or a hoist,
by inserting a rope hook in the eyebolt (1).
DANGER
Do not stay within the crane or hoist range or under
the uplifted machine.
3.2 - POSITIONING OF THE MACHINE (Fig. 2)
3.2.a - BENCH MACHINE POSITIONING
DANGER
Make sure that the carrying plane is suitab le to
support the c harges as mentioned in the c hapter
"TECHNICAL SPECIFICATIONS".
The machine shall be positioned according to the
instructions repor ted in Fig 2, since the y indicate the
minimum safety range to be considered in order to allow
the user or the technician to properly carry out any work
and/or maintenance operations.
Chapter 3
