OEM PF/500 - Wiring Diagram

PIZZAFORM
Wiring diagram
GB - 25

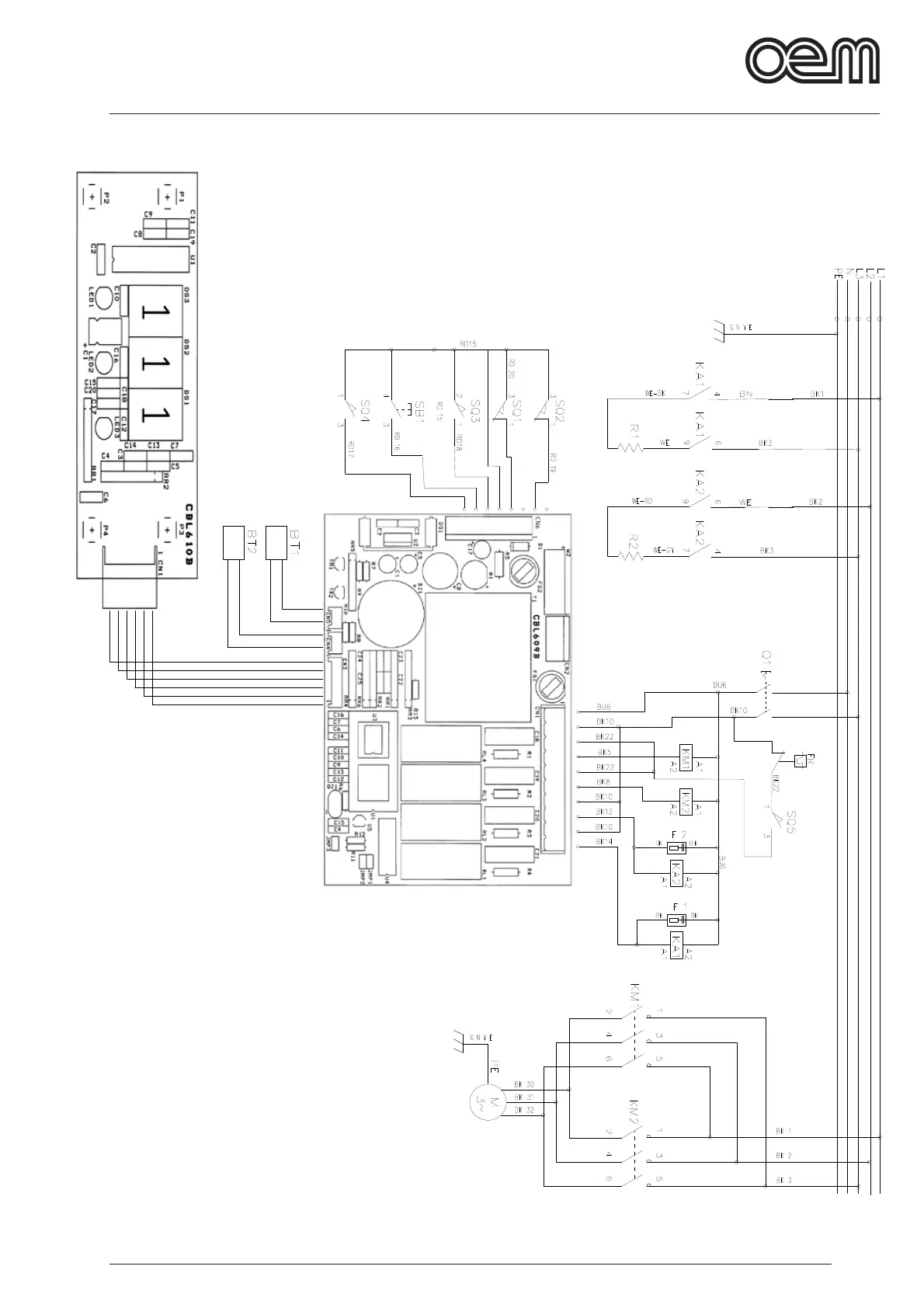

WIRING DIAGRAM
ELECTRIC PANEL CODES
Q1: Main switch
KM1: Up contactor
KM2: Down contactor
KM3: Power relay R1
KM4: Power relay R2
R1: Lower plate resistances
R2: Upper plate resistances
M: Electric motor
SB1/SB2: Run buttons
SQ 1: Phase inversion stopping microswitch
SQ 2: Lower microswitch
SQ 3: Upper microswitch
SQ 4/5: Hand protection microswitch
