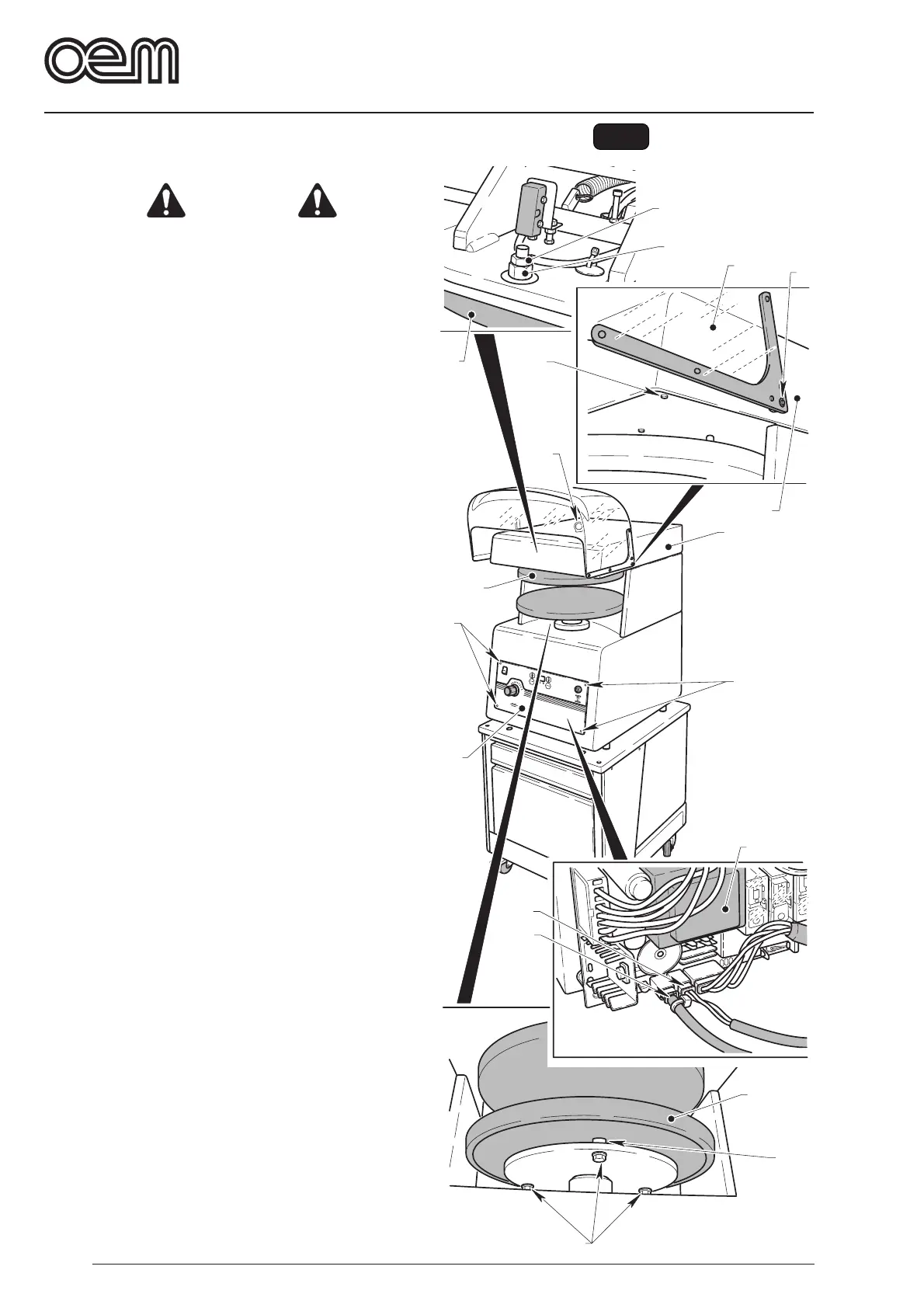

6.1.c.b - Dish disassembling (Fig 3)
PERICOLO
This operation shall be carried out b y a skilled
technician.
Upper dish disassembling
• Remove the top (1) b y unscrewing the rele vant
screws (2).
• Remove the upper case (5) by unscrewing the eyebolt
(3) and the screws (4).
• Unscrew the screws (6) and remove the plate (7) from
the machine body.
• Remove the central panel by unscrewing the relevant
screws and the rear panel.
• Disconnect the connection cables of both resistance
and feeler (8a - CN5 on the upper side) to the card
(8).
• Unscrew the counter nut (9) and the n ut (10) and
remove the dish (11).
• Reassemble everything by proceeding in the reverse
order.
Lower dish disassembling
• Unscrew the screws (12).
• Unscrew the screws (6) and remove the plate (7) from
the machine body.
• Remove the central panel by unscrewing the relevant
screws and the rear panel.
• Disconnect the connection cables of both resistance
and feeler (8a - CN5 on the lo wer side) to the card
(8).
• Remove the dish (13) taking care of the spacers (14).
• Reassemble everything by proceeding in the reverse
order.
