OEM TL 45 - Double-Deck Oven Assembly

EC-compliant use and warning instructions
Page 46
CHAPTER 5 – TRANSPORT AND INSTALLATION

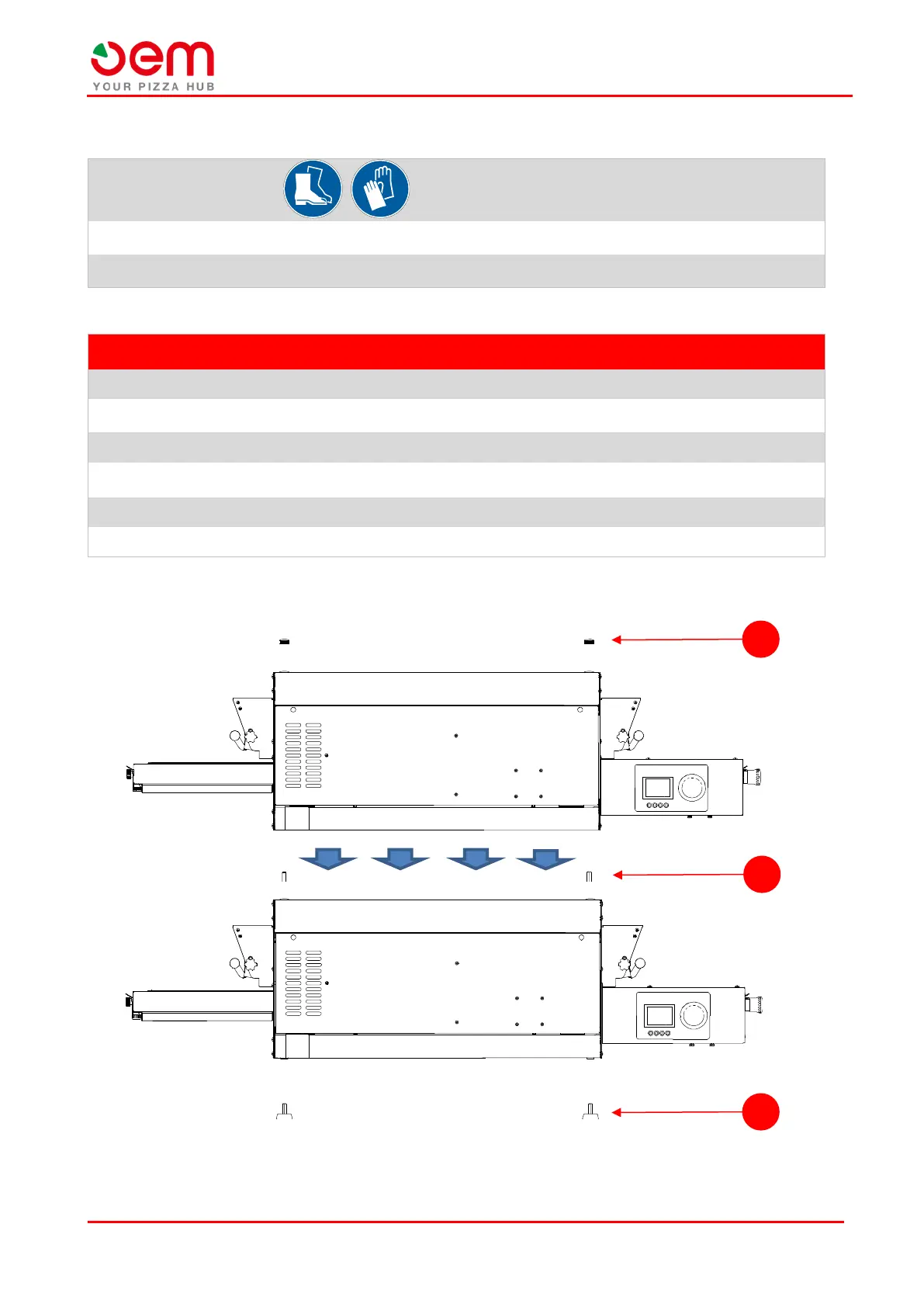

5.4.7. Double-deck oven assembly
Required DPI
Lifting mean
Forklift / Crane / Hoist
Tools to use
-
To assemble the double-deck oven, follow the steps below:
STEP
ACTION
1
Lift the oven as described in the section "Transport".
2
Fix the four feet (A) at the bottom of the oven – LOWER DECK.
3
Place the oven on the counter or in the zone prepared for operation – LOWER DECK.
4
Fix the four caps (B) at the top of the oven- UPPER DECK.
5
Fix the four M10 screws (C) at the bottom of the oven- UPPER DECK.
6
Place the upper chamber on the lower chamber, wedged the heads of the screws into the holes.
B
A
C
