CHAPTER 1 GETTING STARTED
FC5706 Centrifuge Service Manual 1-5 Ohaus Corporation www.ohaus.com
1.8.2 Electrical and electronic components
1.8.2.1 Control board
The control board consists of one plate. The board can only be exchanged completely. If there
is a defect you have to exchange the complete board.
All signal lines lead to the control board.
The PCB controls the entire centrifuge.

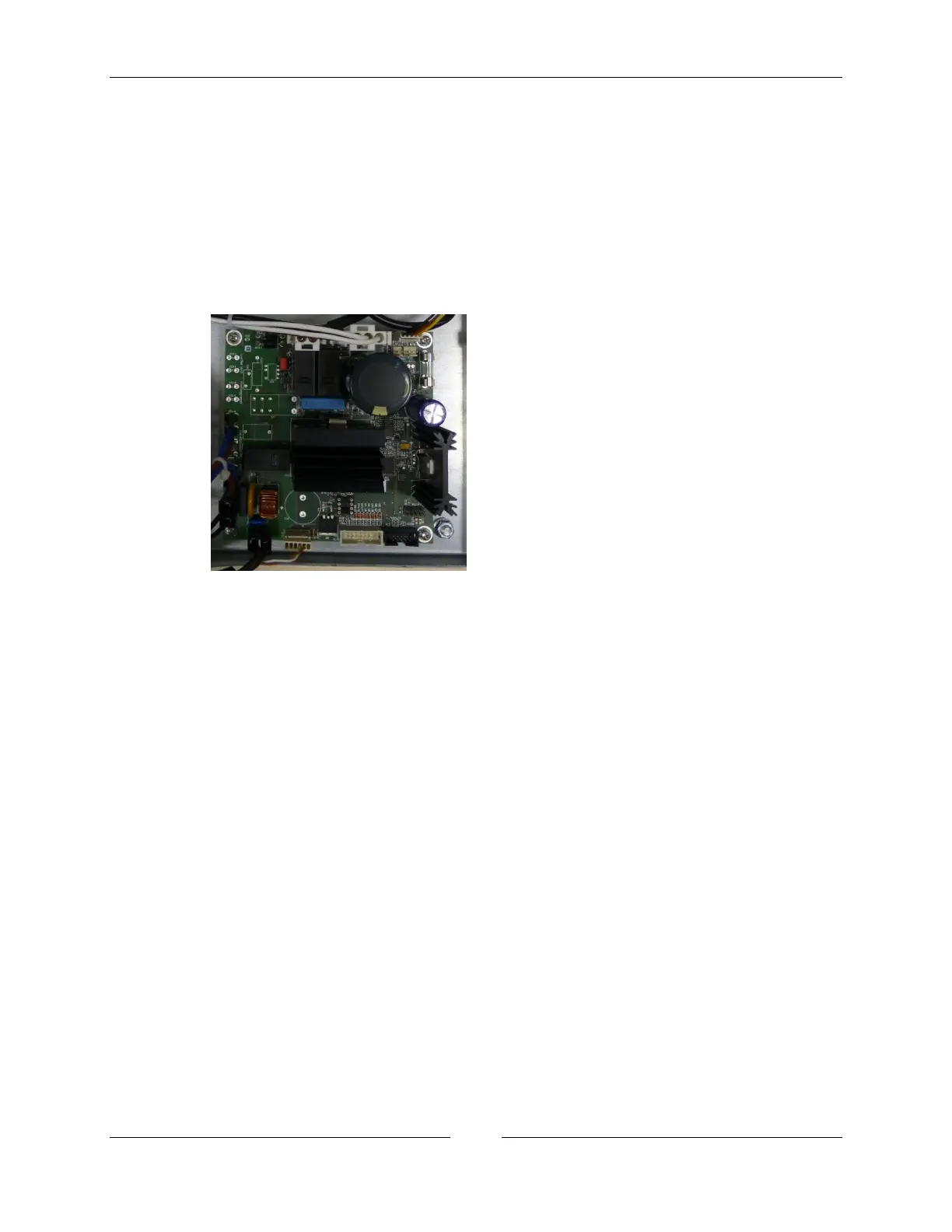

Figure 1: Control board
