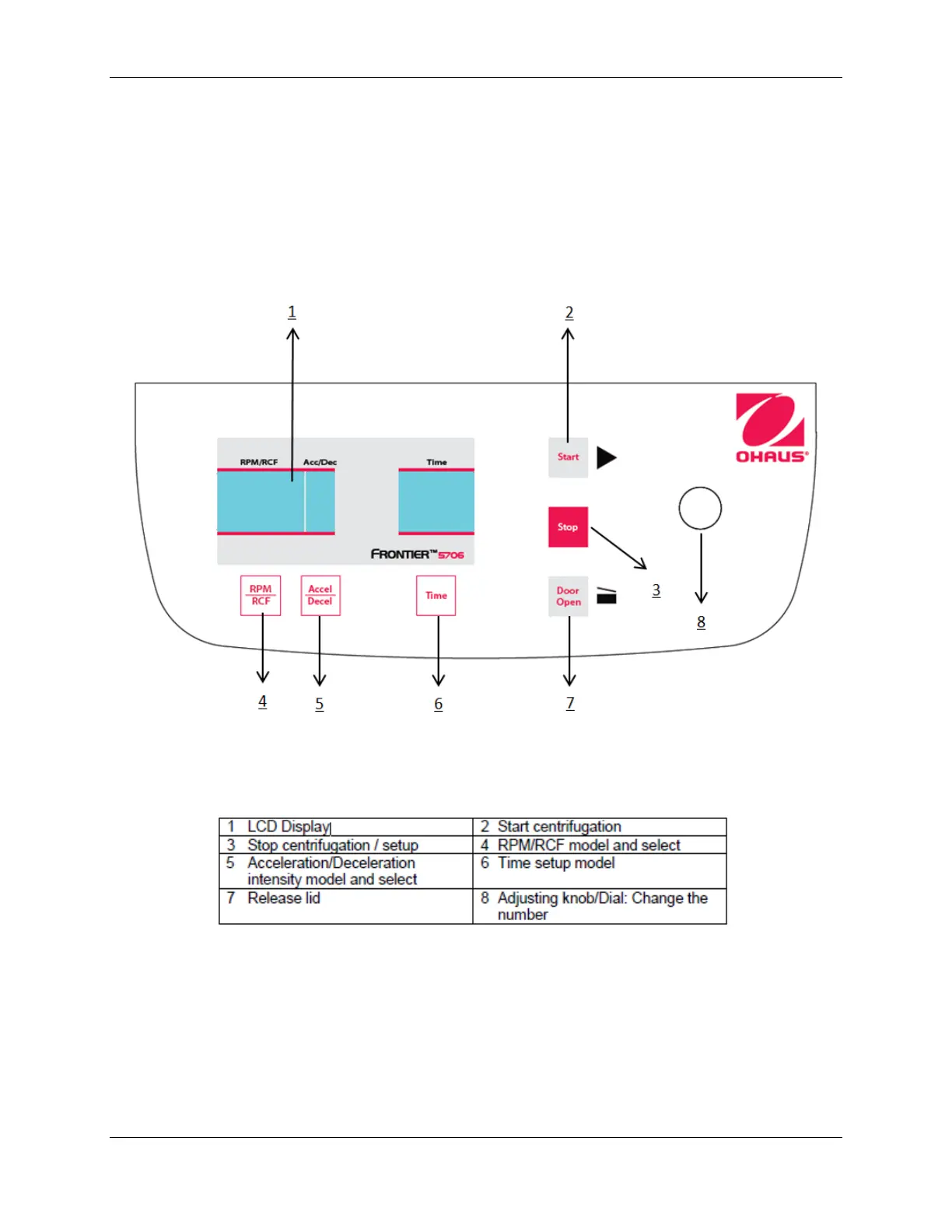

1.10 Function label.
The function label consists of one LCD-display, one potentiometer (8), the upper front housing
and the foil keyboard. These parts can be exchanged separate. The potentiometer (1) regulates
all parameters which are adjustable by pressing a key and which are indicated in the LCD-
display. Inside the time display of the control panel the error message is indicated if there occur
any troubles
Figure 5
