OHAUS FC5706 - Removing the Lid; Replacing the Hinges

SERVICE INSTRUCTIONS
Ohaus Corporation www.ohaus.com 3-11 FC5706 Service Manual

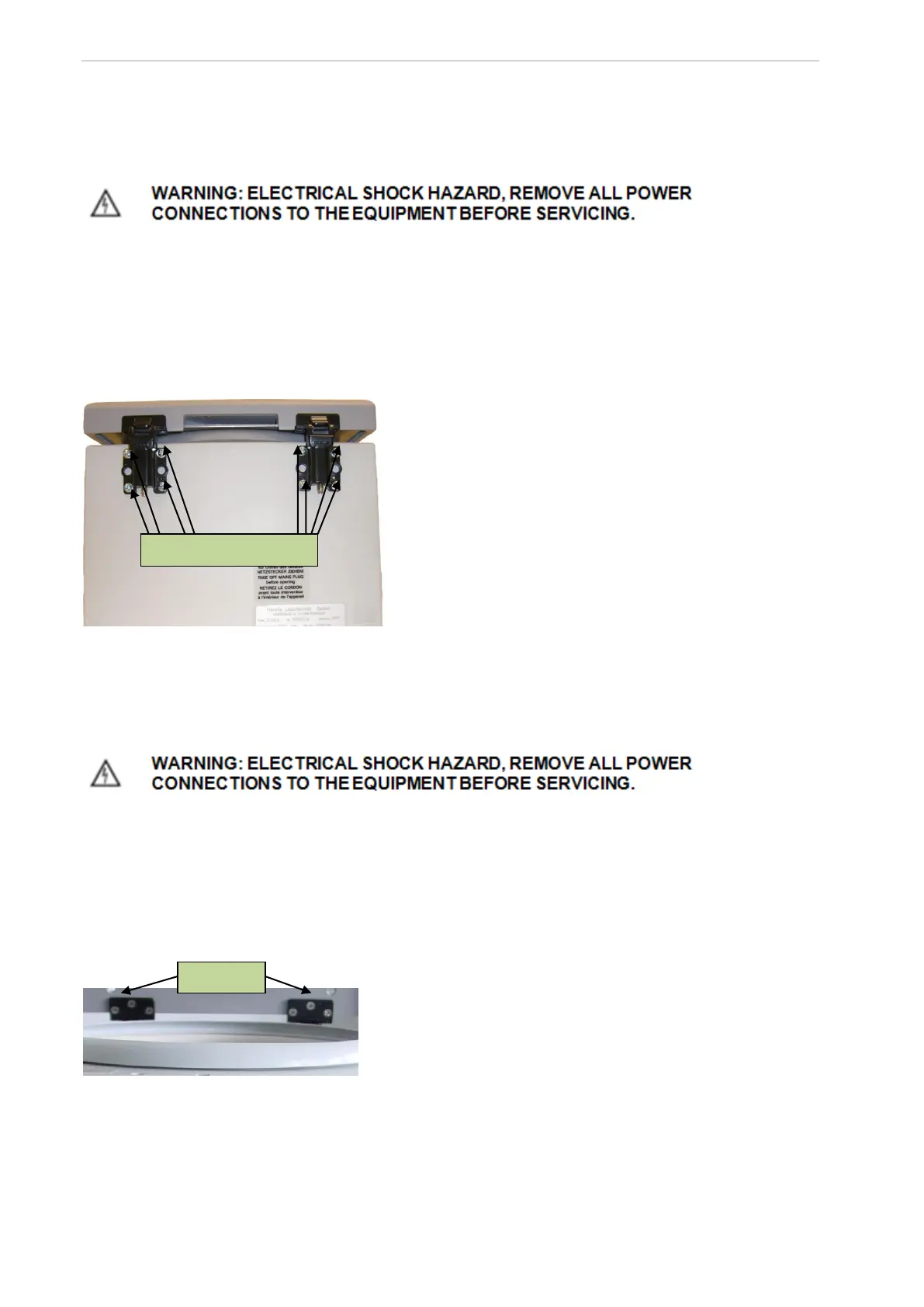

3.3.7 Removing the lid
Open the lid as wide as possible.
 Hold the lid with one hand and remove the fixing screws of the hinges (see figure 28).
 The lid can now be removed completely.
Figure 7
3.3.8 Replacing the hinges
Remove the lid as described in chapter 3.3.7.
 Lay the lid with the upper side down on a smooth under packing to avoid any scratches.
 Loosen the screws of the respective hinges on the inner side of the lid and replace the
hinges.
Figure 8
 Reassemble the unit in reverse order.
Make sure the lid rests on the lid gasket straight and continuous. Tighten the fasting screws
firmly at the backside of the unit after the adjustment
remove
Fixing screws
