SERVICE INSTRUCTIONS
Ohaus Corporation www.ohaus.com 3-11 FC5706 Service Manual

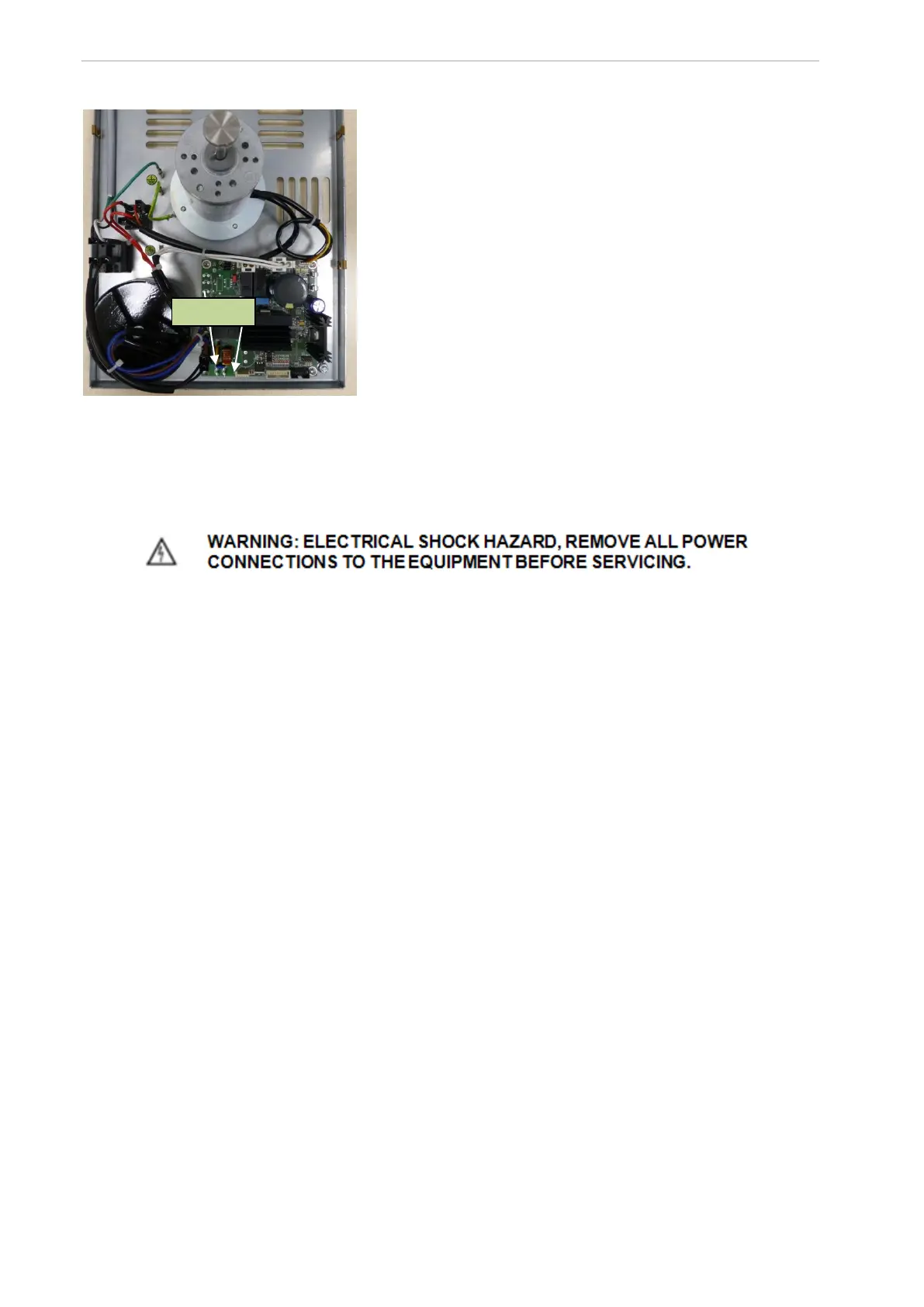

Figure 11
3.2.14 Adjustment of the lid:
1.) Lay the lid down onto the centrifuges seal. Afterwards tighten the screws of the
hinges under a slight pressure onto the lid.
2.) Put some washers underneath of the lid lock, in that way that the lid latch is
centric to the closing bar.
3.) Adjust the height of the lid lock, that the distance between the lid up to the
housing is about 8 mm to 4 mm.
