3.3.6 Replacing the rotor chamber or lid gasket
 Grasp under the lid gasket and lift out the rotor chamber piece by piece. Take care that
the fixing ends are at the back part of the chamber (see figure 27). Start the mounting
always with this glued ends.
 When mounting the rotor chamber make sure that the ventilation drilling behind on the right
points to the corner of the housing (see figure 27)
 Place the new lid gasket on the plastic ring. Take care that the fixing points are at the back
of the chamber.
 Reassemble the unit in reverse order.

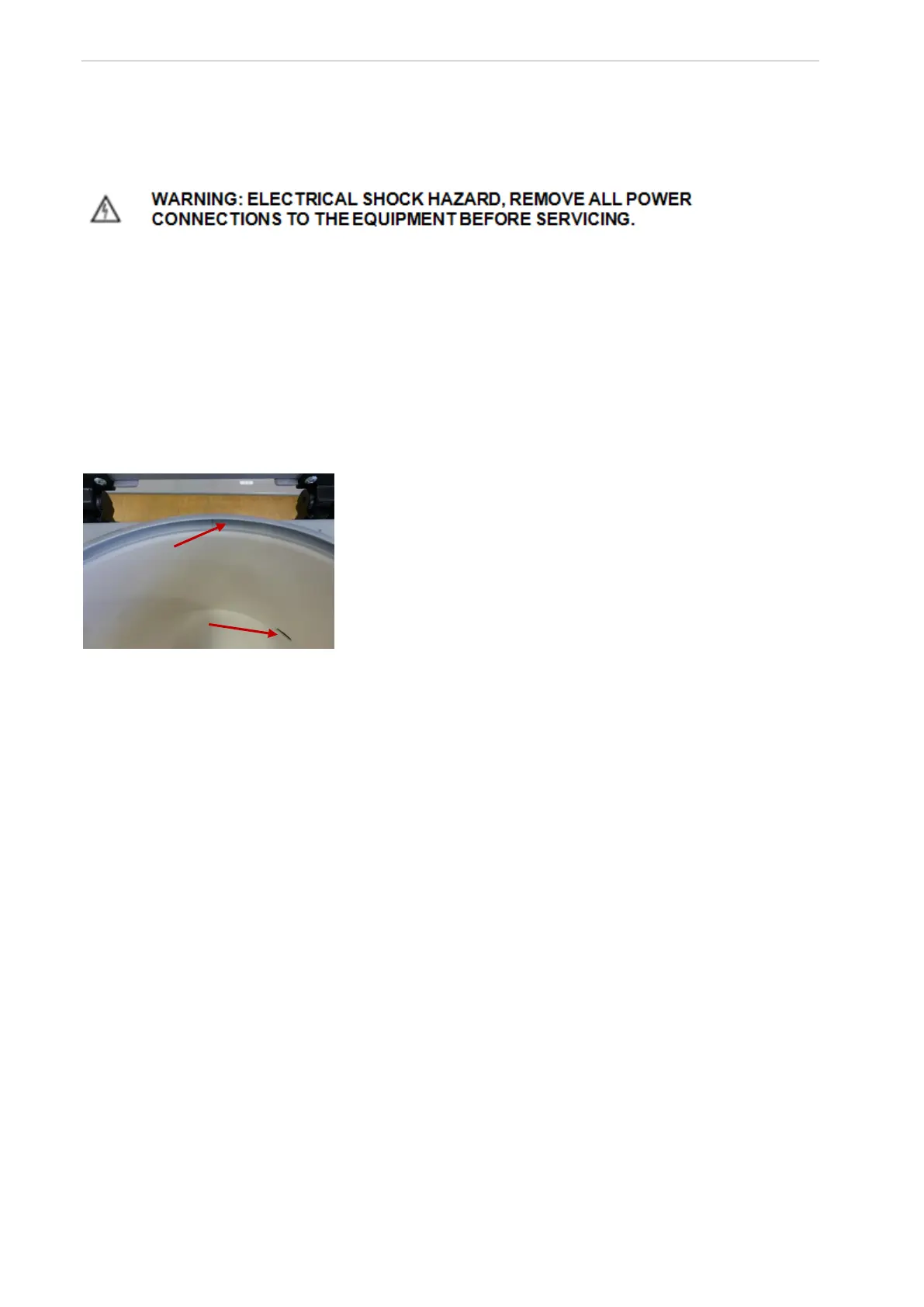

Figure 6
